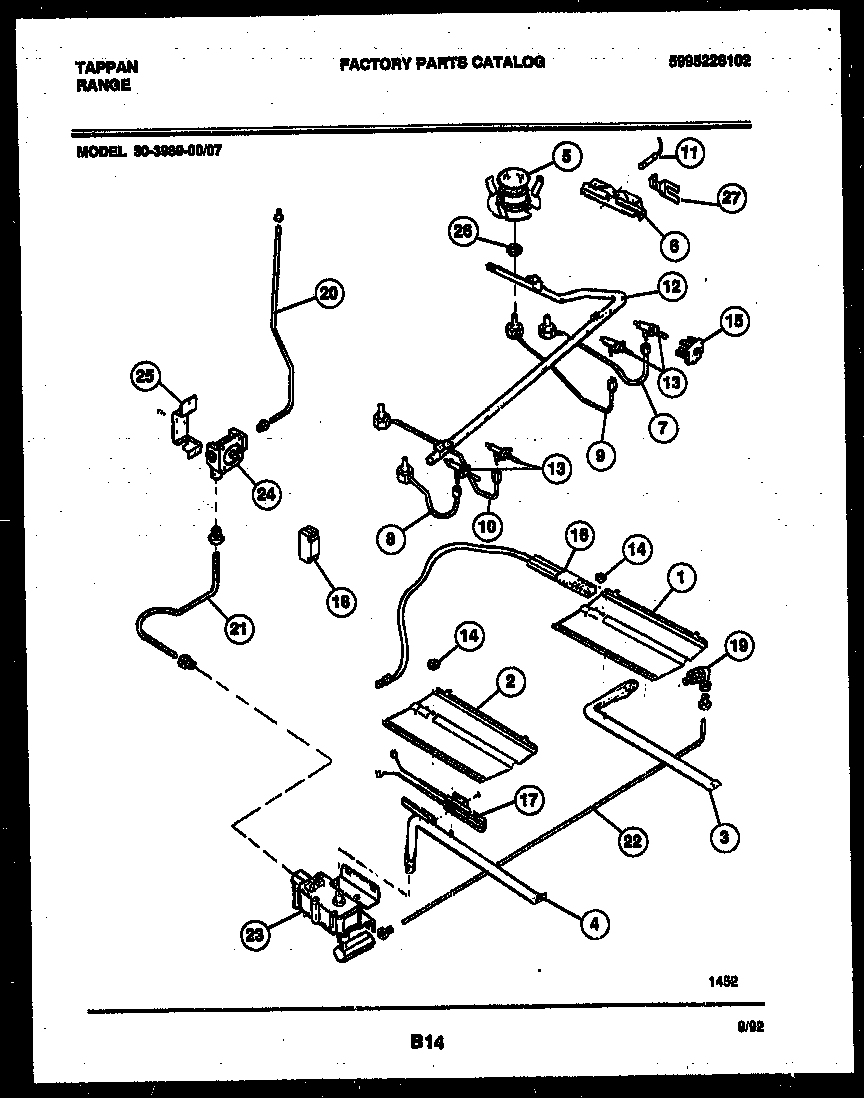

30-3989-00-07 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*79800	WCI 3051420
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER TOP (4)
6	WCI 3206267
7	WCI 5303283665
8	WCI 5303283666
9	WCI 5303283667
10	WCI 5303283668
11	ELECTRODE
12	WCI 5303271375
13	VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
14	5303013272 Frigidaire Oven Nut
15	316035200 Frigidaire Ignition Switch
16	5303935068 Frigidaire Flat Igniter
17	5303935066 Frigidaire Oven Flat Igniter 17" Leads
18	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19	WCI 5303208640
20	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
21	TUBE-VALVE TO REGUL
22	TUBE-VALVE TO MIXER ELBOW
23	5303208499 Frigidaire Safety Gas Valve
24	5303935125 Frigidaire Pressure Regulator
25	316091600 Frigidaire Oven Bracket
26	NUT, SPECIAL
27	WCI 3018617
