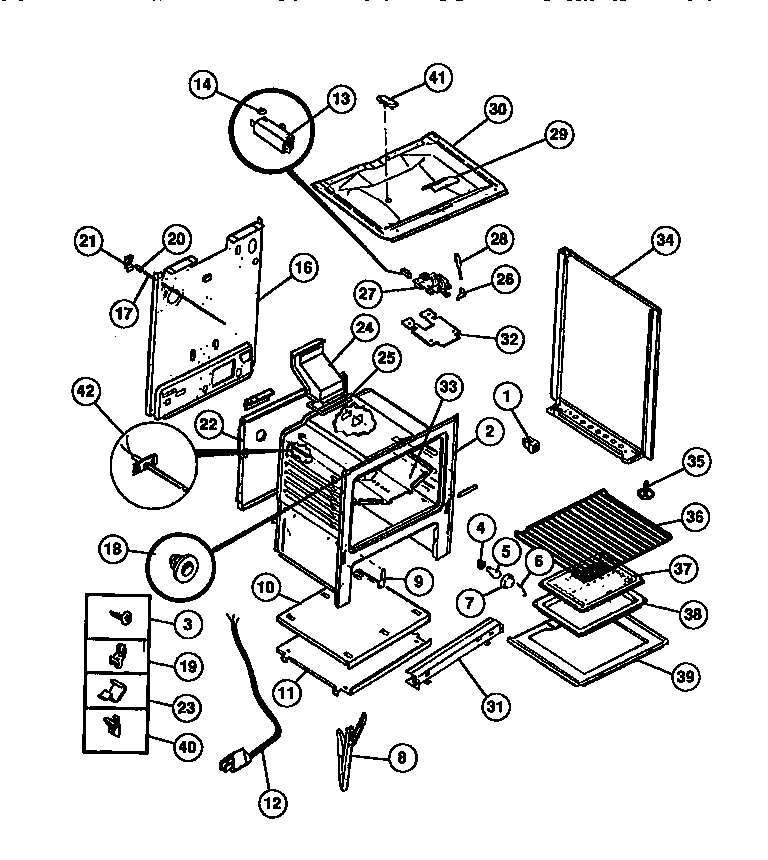

30-3989-23-02 07 – BODY PARTS

Products

PositionProduct
*31810WCI 08013188
*31809SHIELD-LATCH (NON-ILLUSTRATED)
*31810WIRING DIAGRAM – (NOT FOR PURCHASE)
*31809WCI 08068018
1SPACER-BODYSIDE, (8)
3316282700 Frigidaire Oven Screw
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10WCI 3131951
11AWCI 08067992
11WCI 3131313
125304515659 Frigidaire Oven Power Cord
13SWITCH-LATCHING
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303209316
183131903 Frigidaire Door/Drawer Bumper
193203010 Frigidaire Clip
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
33ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
34PNL-BODYSIDE LH-ALMOND
34APNL-BODYSIDE RH-ALMOND
35SCREW-LEVELING
35AFASTNR-LEVEL LEG (4)
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39FINSULATION, OVEN TOP
39A316064600 Frigidaire Oven Support
39D08067973 Frigidaire 0 Insulation
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39EINSULATION, OVEN WRAPPER
39BWCI 08067961
39BTTM-OVEN
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
40ASHIELD-OVN TOP
40BWCI 3131590
41WCI 3015371
41AANTI-TIP KIT (NOT ILLUSTRATED)
425304497424 Frigidaire Oven Temperature Sensor Probe Kit
