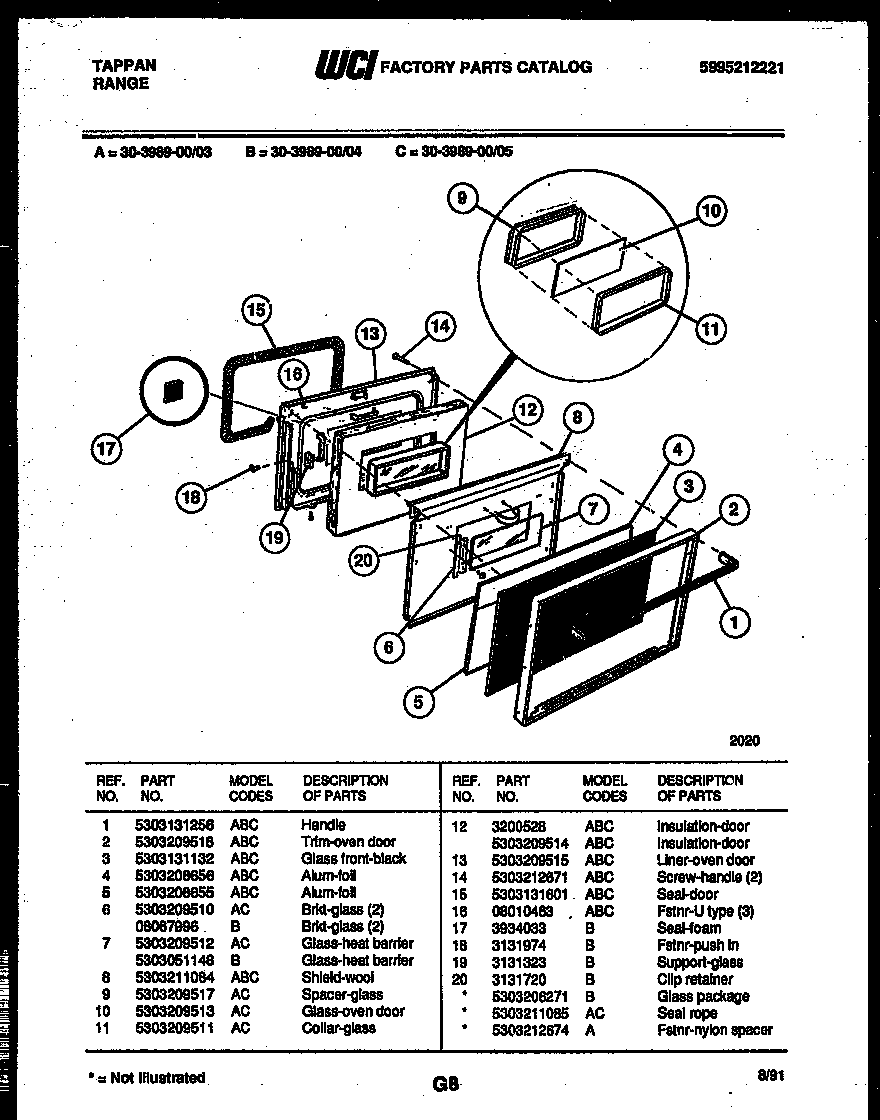

30-3989-23-04 04 – DOOR PARTS

Products

Position	Product
*57012	GLASS PKG
1	HANDLE
2	WCI 5303209518
3	GLASS FRNT
4	REFLECTOR, ALUMINUM FOIL
5	5303208655 Frigidaire Reflector Assembly
6	WCI 08067996
7	WCI 5303051148
8	SHIELD-INSULATION
12	INSUL OV DR W/ FOIL
12	INSULATION-OVEN DOOR
13	WCI 5303209515
14	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
15	5303131601 Frigidaire Oven Seal
16	WCI 08010463
17	SEAL, FOAM (4)
18	FSTNR. SPACER (6)
19	SUPPORT, GLASS
20	CLIP-RETAINING
