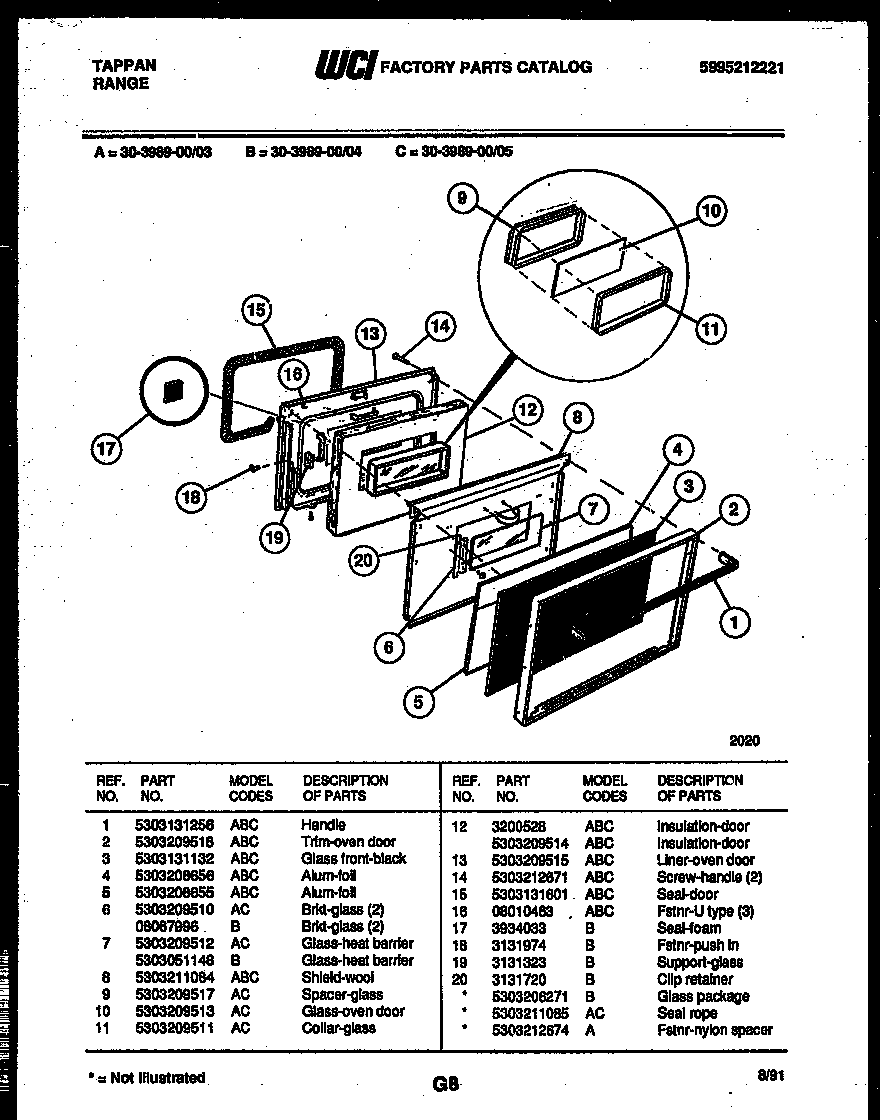

30-3989-23-05 04 – DOOR PARTS

30-3989-23-05 04 – DOOR PARTS

Written by

in

30-3989-23-05 04 – DOOR PARTS

Products

PositionProduct
*57013SEAL-ROPE, 0.25 DIA
1HANDLE
2WCI 5303209518
3GLASS FRNT
4REFLECTOR, ALUMINUM FOIL
55303208655 Frigidaire Reflector Assembly
6BRACKET-GLASS MTG
7GLASS-OVEN DOOR, HEAT BARRIER, (2)
8SHIELD-INSULATION
9WCI 5303209517
10GLASS-OVEN DOOR, INNER
11WCI 5303209511
12INSULATION-OVEN DOOR
12INSUL OV DR W/ FOIL
13WCI 5303209515
14SCREW, CR PAN HD SEMS, 8-32BP X 1.00
155303131601 Frigidaire Oven Seal
16WCI 08010463
