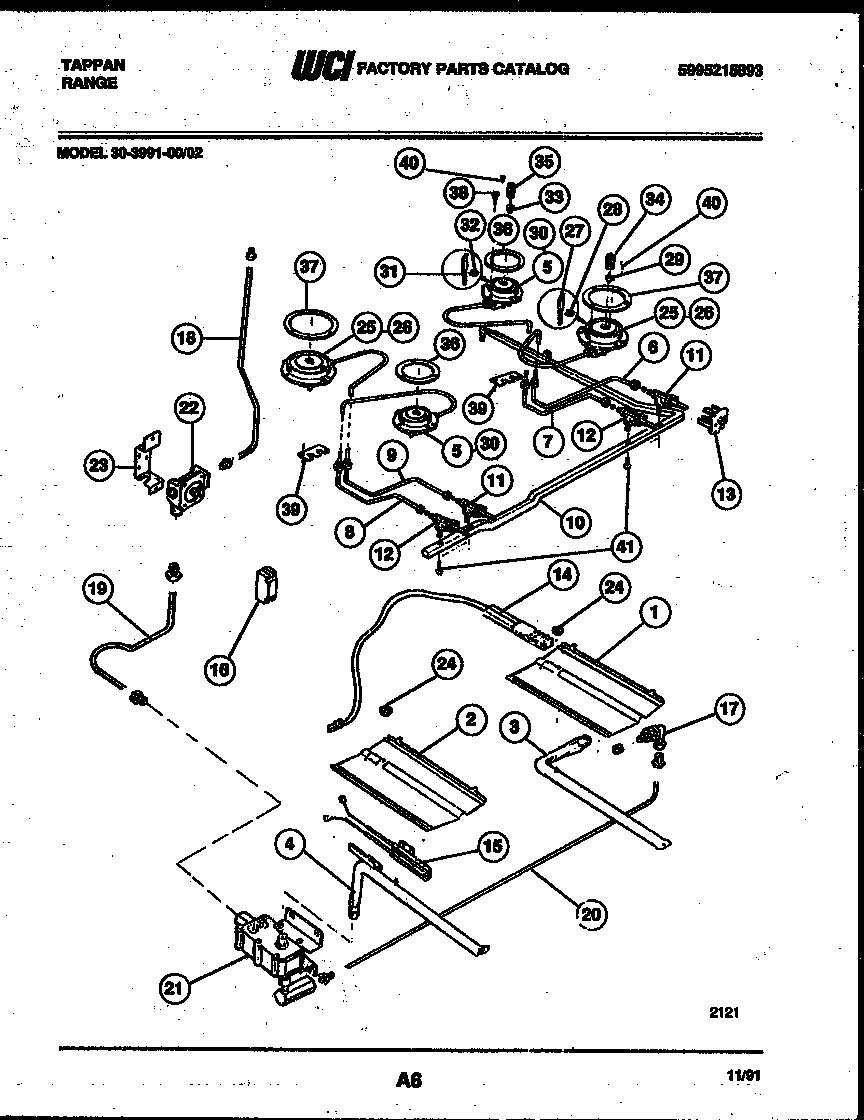

30-3991-00-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5WCI 5303269484
6BURNER TUBE-RF
7BURNER TUBE-RR
8316059613 Frigidaire Oven Tube-LF
9316059615 Frigidaire Oven Tube
10WCI 5303271375
11VALVE-TOP LARGE BURNER (2)
12VALVE-TOP SMALL BURNER (2)
13SWITCH-IGNITER (4)
145303935068 Frigidaire Flat Igniter
155303935066 Frigidaire Oven Flat Igniter 17" Leads
165304505695 Frigidaire Oven Module
17WCI 08067979
18TUBE-ALUM 3/8 REG/MANIFOLD PIPE
19TUBE-VALVE TO REGUL
20TUBE-VALVE TO MIXER ELBOW
215303208499 Frigidaire Safety Gas Valve
225303935125 Frigidaire Pressure Regulator
23316091600 Frigidaire Oven Bracket
245303013272 Frigidaire Oven Nut
25WCI 5303269483
26BURNER TOP LARGE (2)
29ORIFICE LARGE (2) SEE LP PAGE
30BURNER TOP SMALL (2)
31WCI 5303269523
32IGNITER CLIP (2)
33WCI 5303269527
34WCI 5303269503
35SHUTTER-BURNER-MED
36SEAL BURNER (2) MED
37SEAL BURNER (2) LARGE
38316069301 Frigidaire Oven Burner Mounting Primary Screw
39WCI 5303269491
40WCI 5303269844
41316048200 Frigidaire Oven Screw
