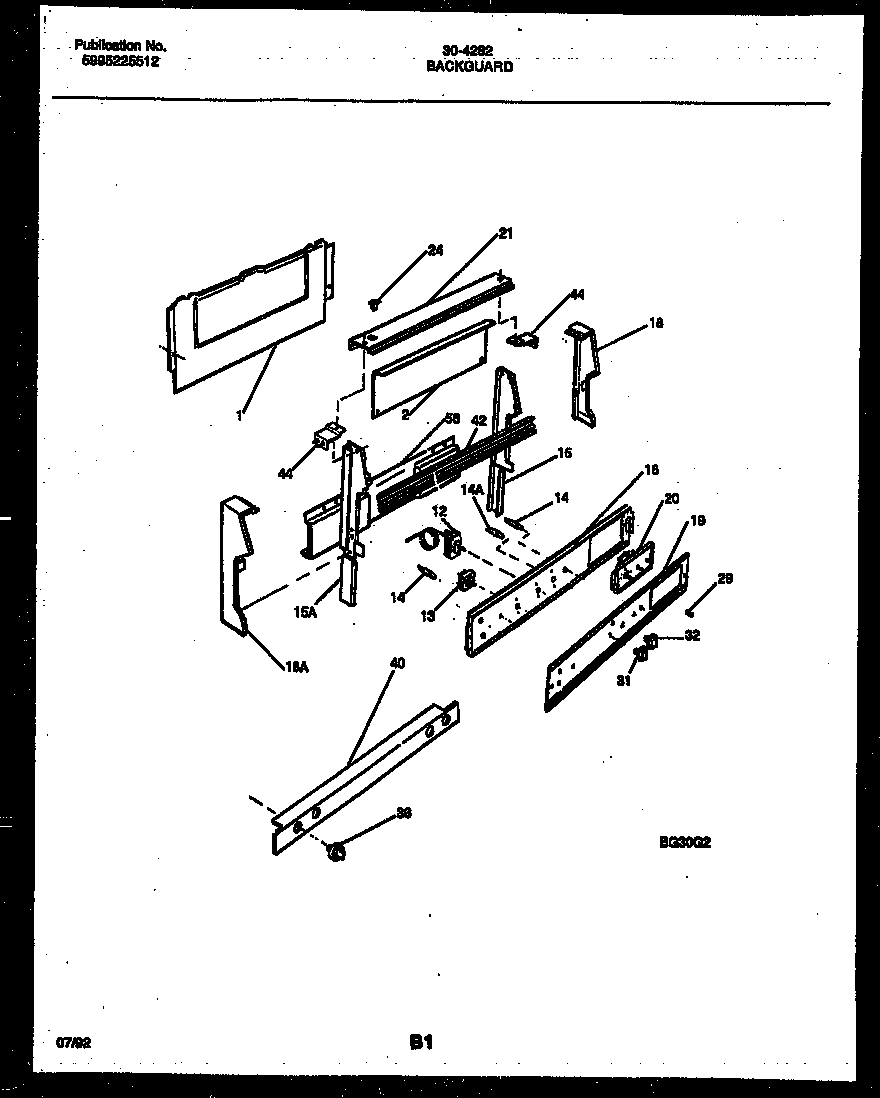

30-4282-00-01 02 – BACKGUARD

30-4282-00-01 02 – BACKGUARD

Written by

in

30-4282-00-01 02 – BACKGUARD

Products

PositionProduct
1SHIELD-BACKGUARD, REAR WALL
2SHIELD-INNER
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14WCI 5308037896
14AINDICATOR LIGHT-LOCK (1)
15WCI 316023102
15AWCI 316023103
16WCI 316042601
18AWCI 5303272833
18WCI 5303272832
19AWCI 5303272836
19WCI 5303272840
20ELECTRICAL CLOCK
21WCI 5303283554
245308015487 Frigidaire Switch-Oven Light
29KNOB-CLOCK
31WCI 5303286099
32WCI 5303286098
36KNOB-TOP VALVE, (4)
40WCI 316009242
42WCI 5303272839
44WCI 5303272831
56WCI 5303272855
