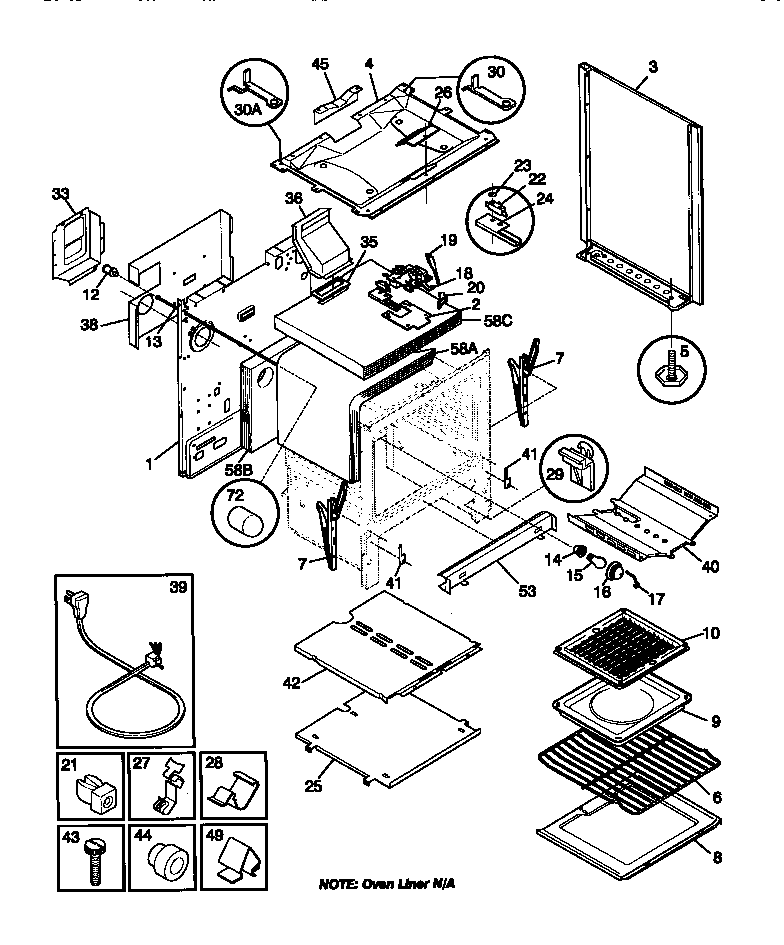

30-4282-00-04 04 – BODY

Products

PositionProduct
*50445SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*50444WCI 5303281584
*50446HARNESS-WIRING, MAIN
*50443WCI 08067961
1WCI 316029410
2SHIELD-OVN TOP
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081005
3WCI 316081004
3FASTENER-EDGE MTG (NOT ILLUSTRATED)
3WCI 08067992
4WCI 316011912
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5WCI 3934058
6316067902 Frigidaire Oven Rack
7WCI 316007002
73203010 Frigidaire Clip
8BTTM-OVEN
8316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 3205234
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 5303015453
18SHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 3203218
20WCI 08013188
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
22STUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
38WCI 316035301
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
5308067973 Frigidaire 0 Insulation
53SHIELD-FRONT
58INSULATION, OVEN TOP
58WCI 316054200
58INSULATION, OVEN WRAPPER
72COVER-LIGHT/SWITCH ROD
