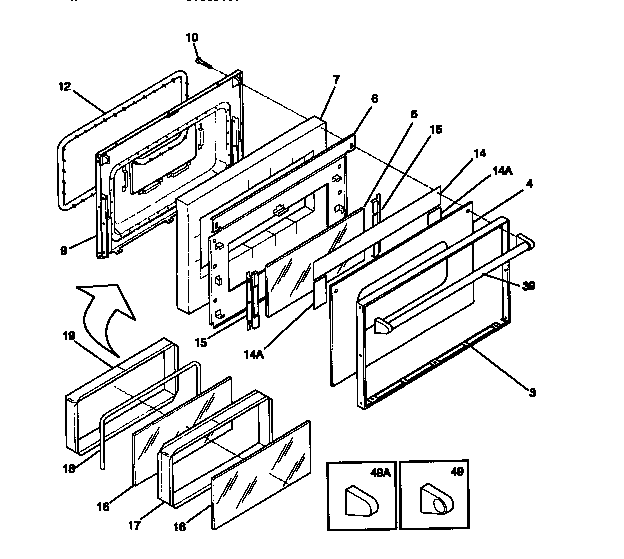

30-4282-00-04 06 – DOOR

30-4282-00-04 06 – DOOR

Written by

in

30-4282-00-04 06 – DOOR

Products

PositionProduct
*50451WCI 316065300
*50455WCI 5303280311
*50457131243700 Frigidaire Screw
*504545303271648 Frigidaire Oven Screw
*504565303285179 Frigidaire Oven Door Screw
*504535303300265 Frigidaire Oven Screw
*50452SCREW, CR PAN HD SEMS, 8-32BP X 1.00
3WCI 316067804
4WCI 316019719
5GLASS-OVEN DOOR, INNER
6WCI 316091501
7WCI 316076400
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14ALUM FOIL-B/G GLASS
145303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
39WCI 316008305
49WCI 5303307194
49WCI 5303307195
