30-4382-23-03 06 – DOOR

30-4382-23-03 06 – DOOR

Written by

in

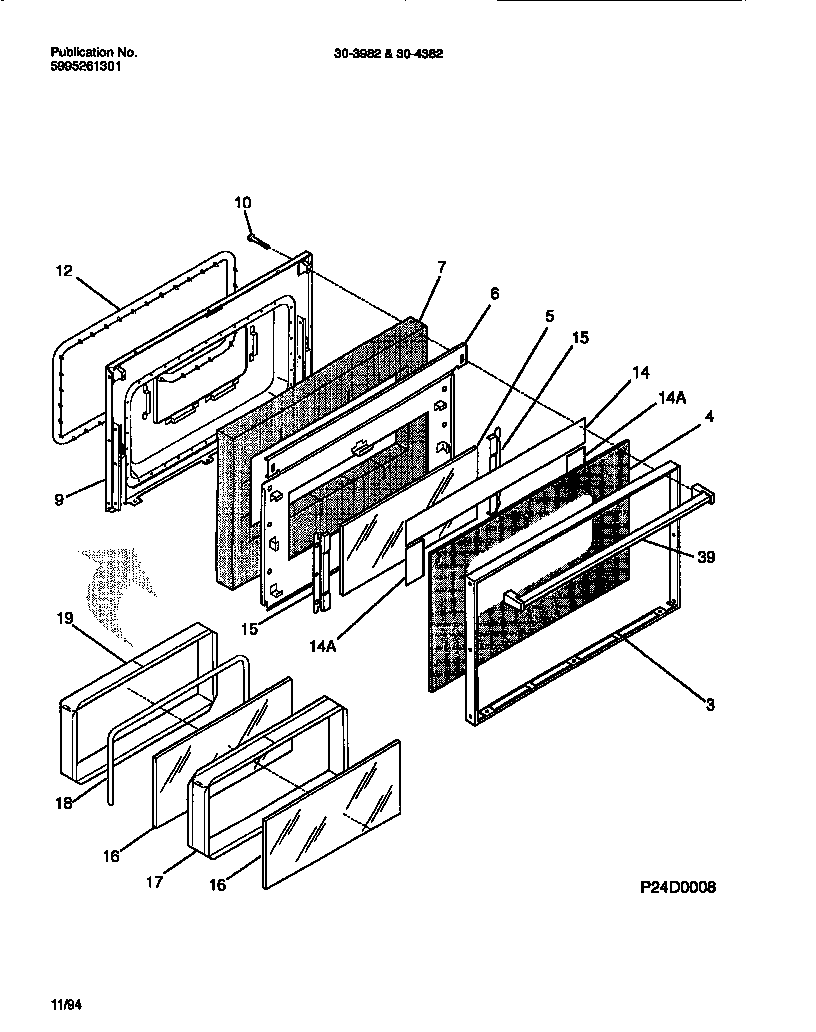

30-4382-23-03 06 – DOOR

Products

PositionProduct
*54010RIVET-POP, WARING-PLATE
*54009WCI 316065300
*54011SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*54012WCI 5303269859
*540135303300265 Frigidaire Oven Screw
*540145303271648 Frigidaire Oven Screw
3WCI 316067803
4WCI 316019712
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION, ALMOND
7INSULATION-OVEN DOOR
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14A5303208655 Frigidaire Reflector Assembly
14ALUM FOIL-B/G GLASS
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
39HANDLE-DOOR, OVEN
