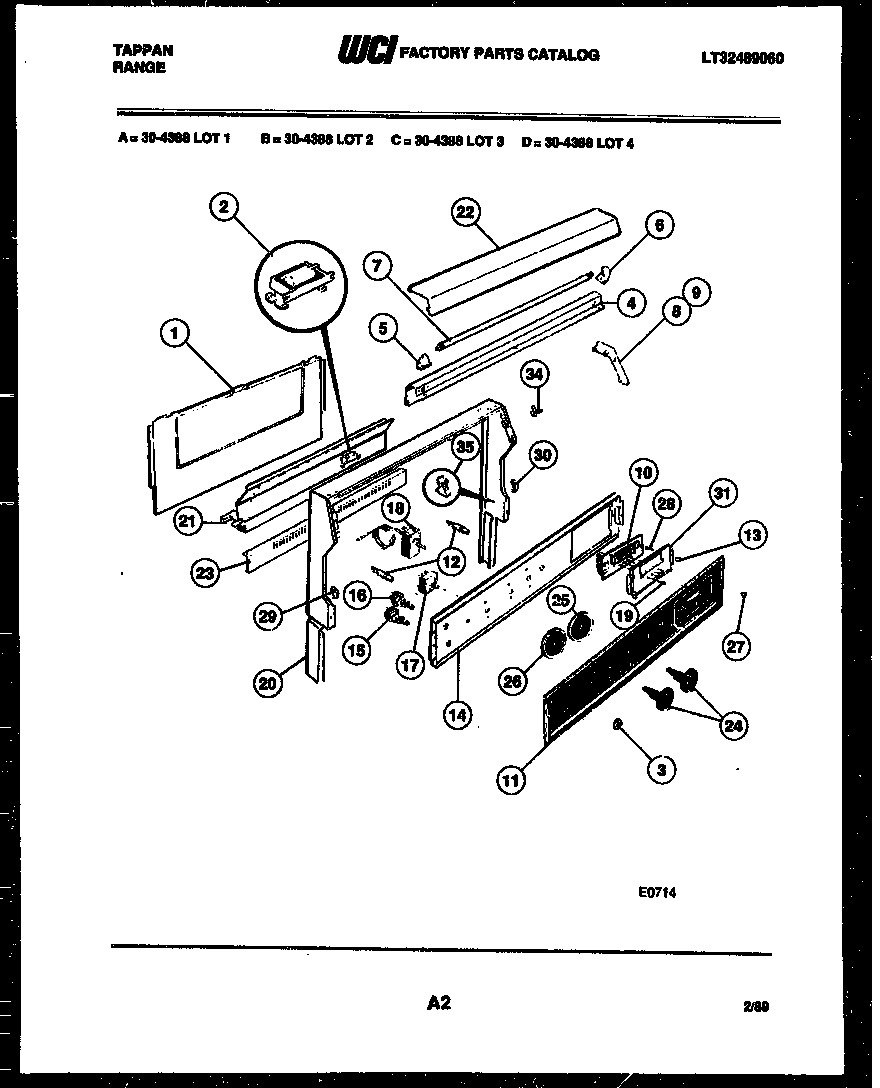

30-4388-23-01 02 – BACKGUARD

Products

Position	Product
1	SHIELD-BACKGUARD,REAR WALL
2	WCI 3051115
3	WCI 045T071P01
4	WCI 3131277
5	RECEPTACLE-FLU LT LH
6	RECEPTACLE-FLU LT RH
7	BULB-FLUOR
8	CAP, END LH
9	CAP, END RH
10	ELECTRIC CLOCK
11	GLASS-CONTROL PANEL
12	INDICATOR LIGHT (4)
13	WCI 358T206P01
14	PLATE INSTRUMENT MOUNTING
15	SWITCH-OV LT
16	SW.-FLUOR. LT.
17	SWITCH SELECTOR 4 POS
18	WCI 3051323
19	WCI 3131730
20	WCI 3016852
21	TRIM-SPLASHER
22	WCI 3131466
23	WCI 3131241
24	WCI 3051188
25	WCI 3131933
26	WCI 3131945
27	NUT - DECOR (2)
27B	WCI 655T444P01
27A	RIVET ACCORDIAN (NON-ILLUSTRATED)
28	SHAFT-ELEC. CLK.
29	WCI 123T120P03
30	WCI 123T120P04
31A	WCI 3051304
31	WCI 3131556
34	FSTNR-GLASS(2)
34A	NUT (10-24) (NON-ILLUSTRATED)
35	SUPPORT-BACKGUARD (2)
