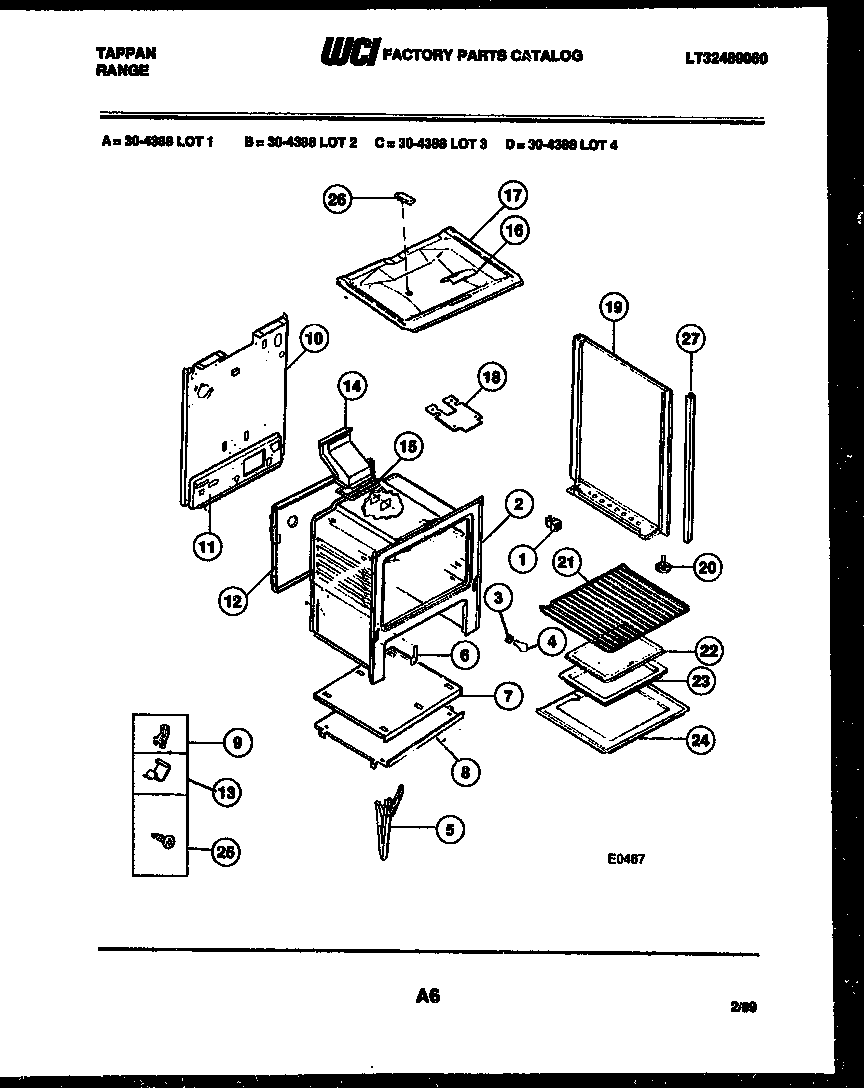

30-4388-23-03 05 – BODY PARTS

30-4388-23-03 05 – BODY PARTS

Written by

in

30-4388-23-03 05 – BODY PARTS

Products

PositionProduct
1WCI 665T188P02
3WCI 3015371
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6WCI 3131570
7WCI 3131951
8WCI 3131313
9A5304534000 Frigidaire Cord
9CLIP-TUBING (2)
10WCI 3131567
11WCI 3131590
12WCI 3131316
13CLIP, WIRE
14WCI 3131931
15316542102 Frigidaire Flue Gasket
15A3051162 Frigidaire Oven Range Front Broiler Drawer Glide
15BWASHER-BLACK
16WCI 3131101
17WCI 095T030F02-86
18SHIELD-OVN TOP
19PNL B/S-LH (ALMOND)
19AWCI 3201000
19WCI 3201001
19APNL B/S-RH (ALMOND)
20WCI 636M004P01
21316067902 Frigidaire Oven Rack
22WCI 3131356
23PAN, BROILER
24B3131903 Frigidaire Door/Drawer Bumper
24EWCI 3131201
24WCI 058T036F03-86
24A316064600 Frigidaire Oven Support
24DWCI 3131246
24FWCI 655T434F01
24CFSTNR-POWER CORD (NON-ILLUSTRATED)
25ACOVER FRNT MAIN (NON-ILLUSTRATED)
25316282700 Frigidaire Oven Screw
26COVER, BURNER BOX
27TRIM-VERT B/S (2)
