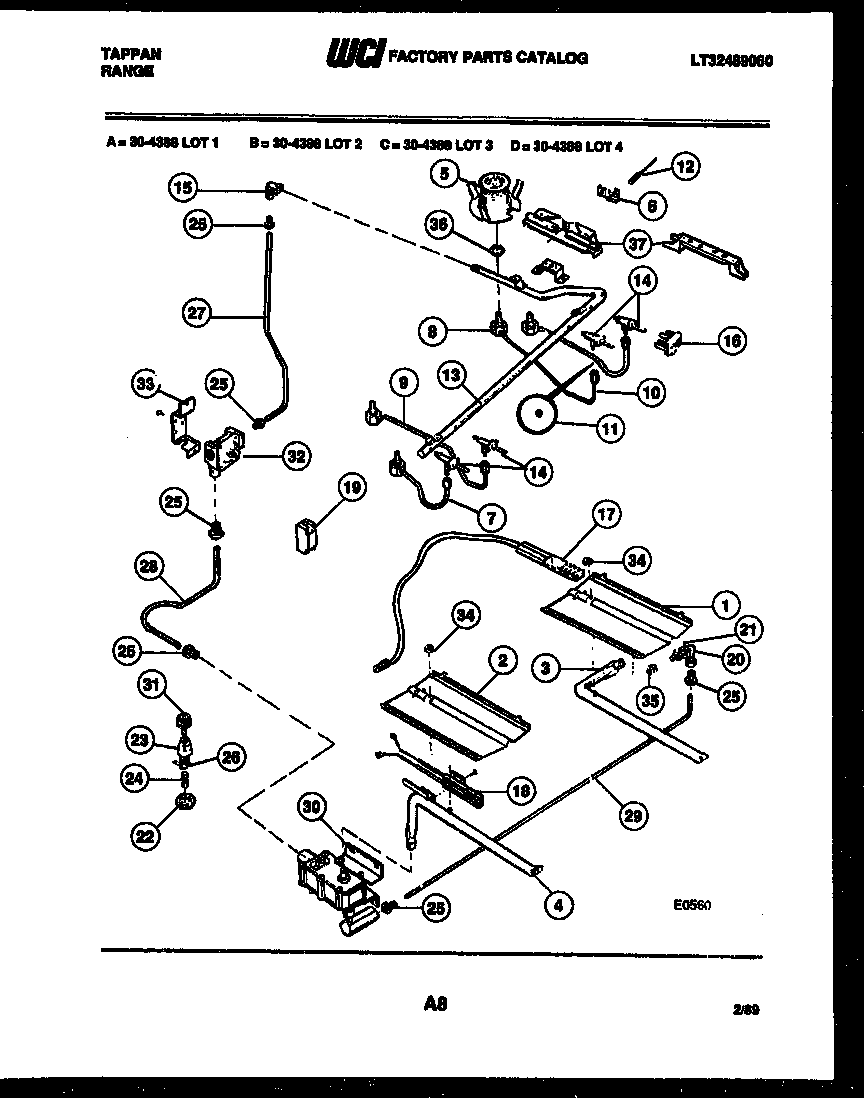

30-4388-23-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*12202WCI 3051420
1WCI 3131283
2WCI 3131327
3WCI 079T028P01
4WCI 3131634
5WCI 079T032S02
6RETAINER IGNITER
7WCI 079T033H01
8WCI 079T033H02
9WCI 079T033H03
10WCI 079T033H04
11WCI 247T074P01
12IGNITER-TOP BURNR (4)
13WCI 3131440
14WCI 3017846
15ANUT COMPRESSN (4)
15ELBOW 1/2 NP TO 9/16-24
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195304505695 Frigidaire Oven Module
20WCI 455T008P02
21NUT
25FITTING-LOXIT (8)
27TUBE-REGUL TEE
28TUBE-VALVE TO REGUL
29TUBE-VALVE TO MIXER ELBOW
30A5300809968 Frigidaire Dishwasher P-1 Washer
305303208499 Frigidaire Safety Gas Valve
31CAP-FUSE RECEPT.
325303935125 Frigidaire Pressure Regulator
33WCI 313110
345303013272 Frigidaire Oven Nut
35SPUD NO 50
36NUT SPECIAL
36AWCI 072T821F01
37WCI 072T839F02
