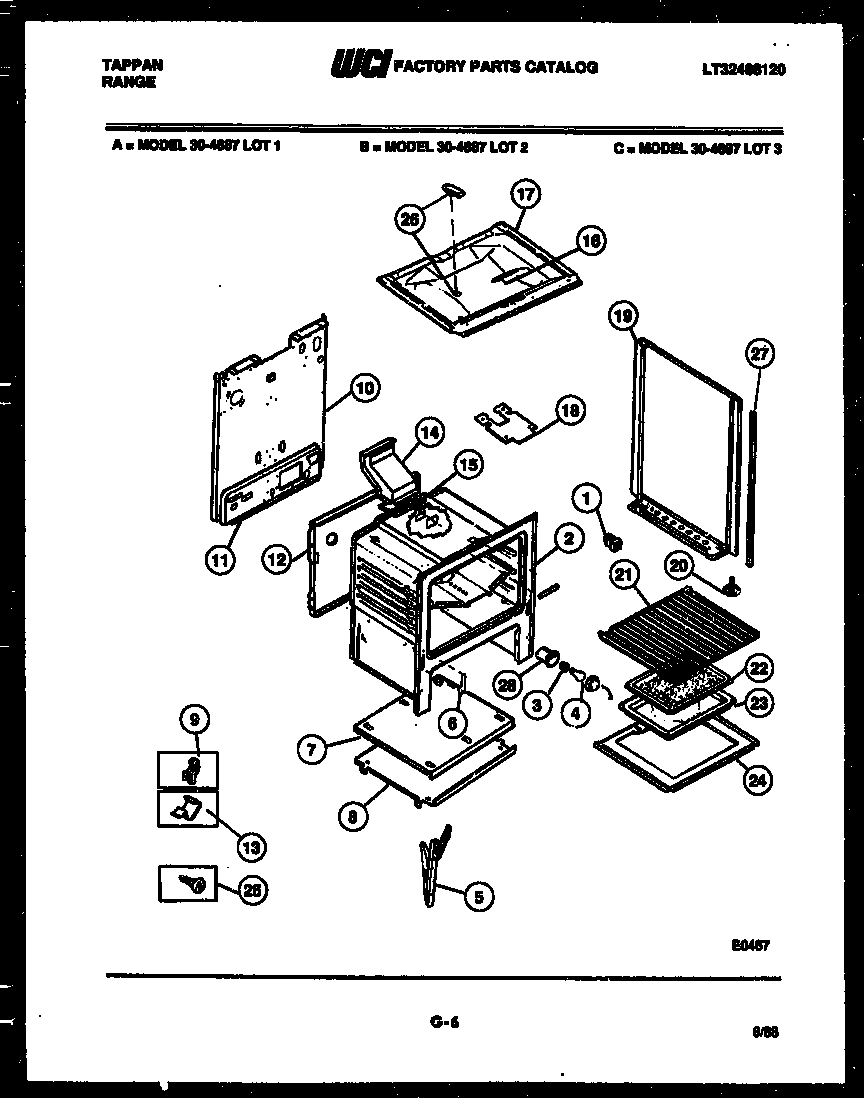

30-4687-00-01 05 – BODY PARTS

Products

Position	Product
1	WCI 665T188P02
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
7	WCI 3131951
8	WCI 3131313
9A	5304534000 Frigidaire Cord
9	5303284616 Frigidaire Range Bulb Clip Thermostat
10	WCI 3131567
11	WCI 3131590
12	WCI 3131316
13	CLIP, WIRE
14	WCI 3131931
15A	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
15	316542102 Frigidaire Flue Gasket
15B	WASHER-BLACK
16	WCI 3131101
17	WCI 095T030F02-86
18	SHIELD-OVN TOP
19A	PANEL B/S-LH BLACK
19	PNL. B/S (RH WHITE)
19	PANEL B/S-RH BLACK
19A	PNL. B/S (LH WHITE)
20	WCI 636M004P01
21	316067902 Frigidaire Oven Rack
22	WCI 3131356
23	PAN, BROILER
24B	3131903 Frigidaire Door/Drawer Bumper
24C	FSTNR-POWER CORD (NON-ILLUSTRATED)
24	WCI 058T036F02-86
24E	WCI 3131201
24D	WCI 3131246
24A	316064600 Frigidaire Oven Support
24F	WCI 655T434F01
25A	COVER-BURNER BOX
25	316282700 Frigidaire Oven Screw
26	WCI 3015371
27	TRIM-VERT B/S (2)
28	TUBE-OVEN LIGHT
