30-4687-08-02 02 – BACKGUARD – Aparts

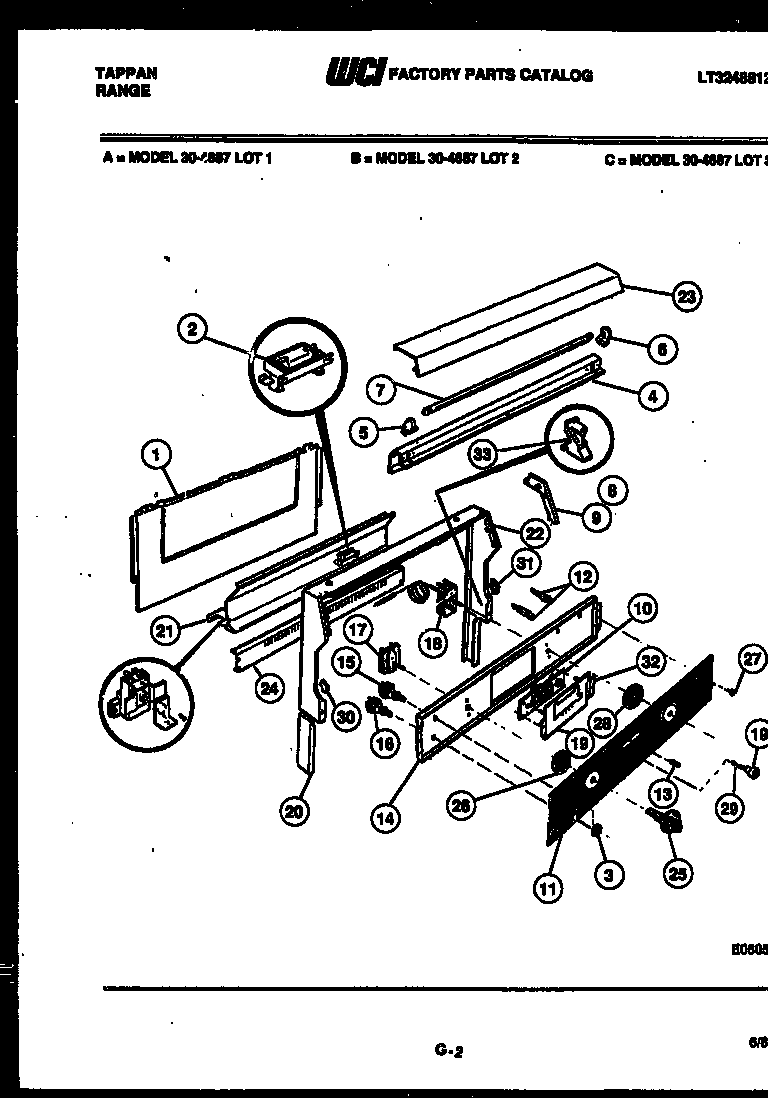

30-4687-08-02 02 – BACKGUARD

Products

Position	Product
1	SHIELD-BACKGUARD,REAR WALL
2	WCI 3051115
3	WCI 045T071P01
4	WCI 3131277
5	RECEPTACLE-FLU LT LH
6	RECEPTACLE-FLU LT RH
7	BULB-FLUOR
8	CAP, END LH
9	CAP, END RH
10	ELECTRIC CLOCK
11	WCI 3015144
12	OVEN LIGHT INDICATOR
13	WCI 358T206P01
14	PLATE INSTRUMENT MOUNTING
15	SW.-FLUOR. LT.
16	SWITCH-OV LT
17	SWITCH SELECTOR 4 POS
18	WCI 3051323
19	BUTTON CLOCK (3)
20	WCI 3131465
21	TRIM SPLASHER
22	FASTENER, GLASS (2)
23	WCI 3051329
24	WCI 3131241
25	WCI 3051188
26	WCI 3131945
27	NUT - DECOR (2)
28A	WCI 655T444P01
28	DIAL THERMO
29	SHAFT-ELEC. CLK.
30	WCI 123T120P03
31A	NUT (10-24) (NON-ILLUSTRATED)
31	WCI 123T120P04
32A	WCI 3051304
32	WCI 3131556
33	SUPPORT-BACKGUARD (2)
