30-4687-23-01 02 – BACKGUARD – Aparts

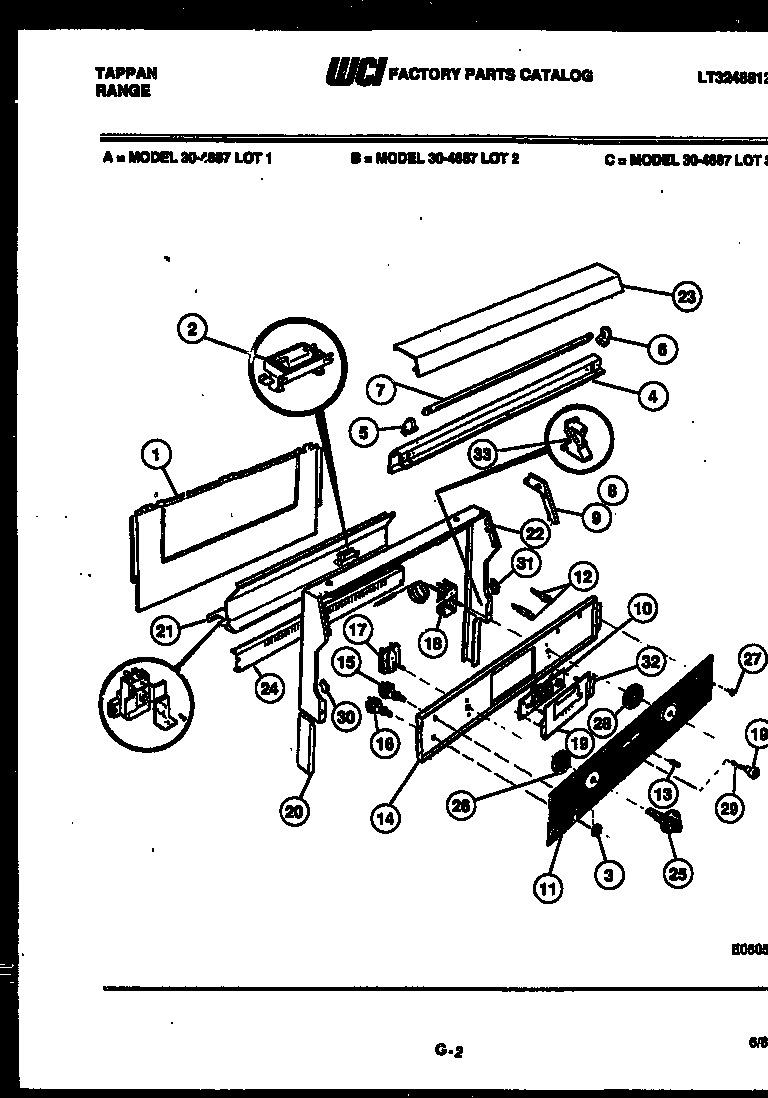

30-4687-23-01 02 – BACKGUARD

Products

Position	Product
1	SHIELD-BACKGUARD,REAR WALL
2	WCI 3051115
3	WCI 045T071P01
4	WCI 3131277
5	RECEPTACLE-FLU LT LH
6	RECEPTACLE-FLU LT RH
7	BULB-FLUOR
8	CAP, END LH
9	CAP, END RH
10	ELECTRIC CLOCK
11	WCI 3015144
12	INDICATOR LIGHT (4)
13	WCI 358T206P01
14	PLATE INSTRUMENT MOUNTING
15	SW.-FLUOR. LT.
16	SWITCH-OV LT
17	SWITCH SELECTOR 4 POS
18	WCI 3051323
19	WCI 3131730
20	WCI 3051455
21	TRIM SPLASHER
22	FASTENER, GLASS (2)
23	WCI 3051329
24	WCI 740T522F01
25	WCI 3051188
26	WCI 3131945
27	NUT - DECOR (2)
28A	WCI 655T444P01
28	DIAL THERMO
29	SHAFT-ELEC. CLK.
30	WCI 123T120P03
31	WCI 123T120P04
31A	NUT (10-24) (NON-ILLUSTRATED)
32	WCI 3131556
32A	WCI 3051304
