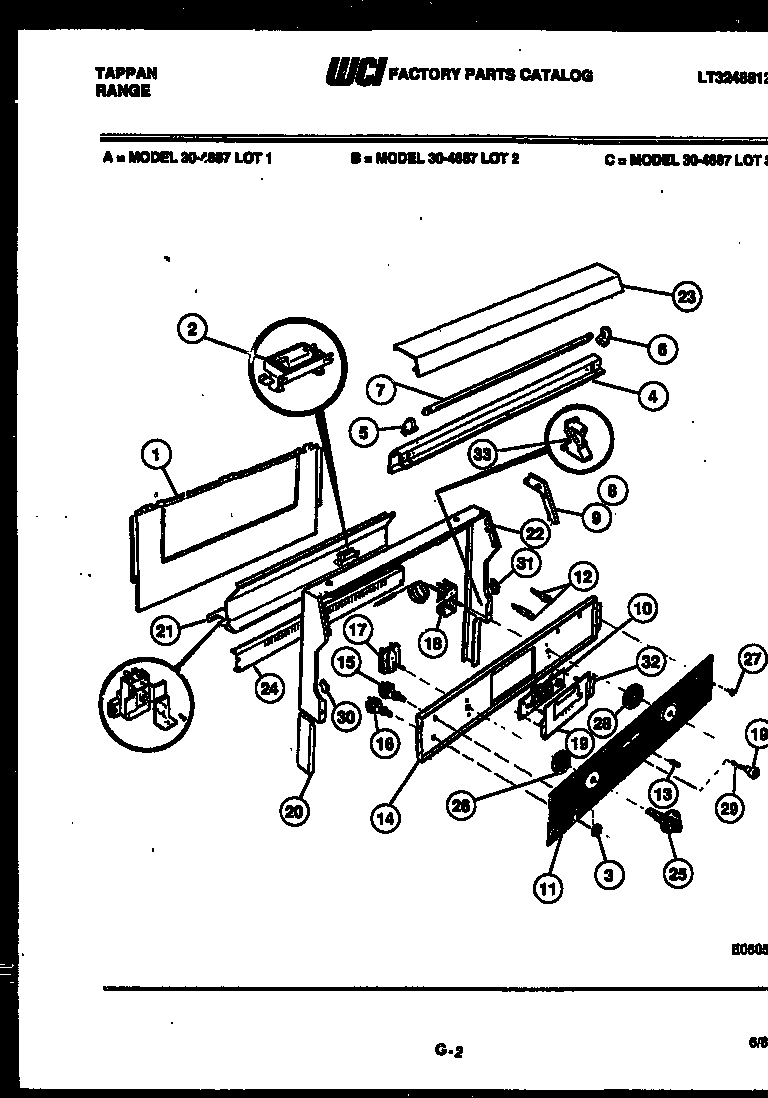

30-4687-23-02 02 – BACKGUARD

Products

PositionProduct
1SHIELD-BACKGUARD,REAR WALL
2WCI 3051115
3WCI 045T071P01
4WCI 3131277
5RECEPTACLE-FLU LT LH
6RECEPTACLE-FLU LT RH
7BULB-FLUOR
8CAP, END LH
9CAP, END RH
10ELECTRIC CLOCK
11WCI 3015144
12OVEN LIGHT INDICATOR
13WCI 358T206P01
14PLATE INSTRUMENT MOUNTING
15SW.-FLUOR. LT.
16SWITCH-OV LT
17SWITCH SELECTOR 4 POS
18WCI 3051323
19BUTTON CLOCK (3)
20WCI 3131465
21TRIM SPLASHER
22FASTENER, GLASS (2)
23WCI 3051329
24WCI 3131241
25WCI 3051188
26WCI 3131945
27NUT – DECOR (2)
28AWCI 655T444P01
28DIAL THERMO
29SHAFT-ELEC. CLK.
30WCI 123T120P03
31ANUT (10-24) (NON-ILLUSTRATED)
31WCI 123T120P04
32AWCI 3051304
32WCI 3131556
33SUPPORT-BACKGUARD (2)
