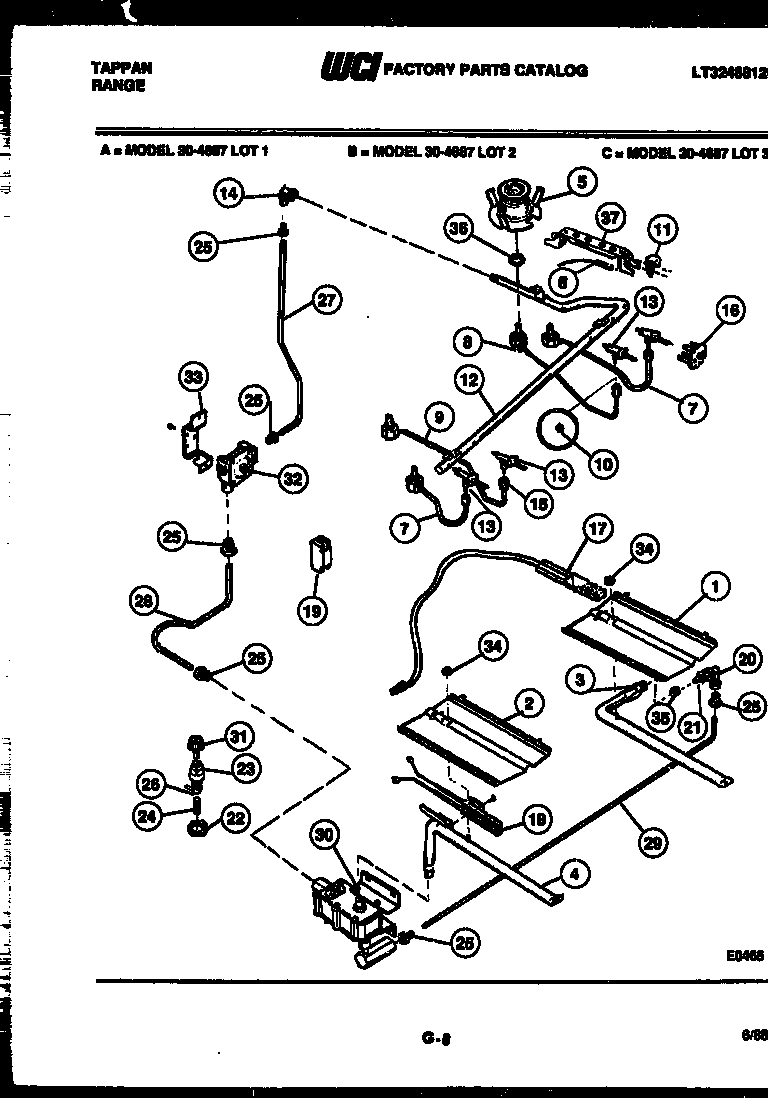

30-4687-23-02 06 – BURNER, MANIFOLD AND GAS CONTROL

30-4687-23-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-4687-23-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*87641WCI 3051420
1WCI 3131283
2WCI 3131327
3WCI 079T028P01
4WCI 3131634
5WCI 079T032S02
6RETAINER IGNITER
7BURNER TUBE-RF & LF
8WCI 079T033H02
9WCI 079T033H03
10WCI 247T074P01
11IGNITER-TOP BURNR (4)
12WCI 3131440
13WCI 3131126
13WCI 3017846
14ELBOW 1/2 NP TO 9/16-24
15NUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195304505695 Frigidaire Oven Module
20WCI 455T008P02
21NUT
22HEX NUT FUSE
23SEAL “O“RING
24FUSE-5A 250V
25FITTING-LOXIT (8)
26WCI 597T034P03
27TUBE-REGUL TEE
28TUBE-VALVE TO REGUL
29TUBE-VALVE TO MIXER ELBOW
305303208499 Frigidaire Safety Gas Valve
30A5300809968 Frigidaire Dishwasher P-1 Washer
31CAP-FUSE RECEPT.
325303935125 Frigidaire Pressure Regulator
33316091600 Frigidaire Oven Bracket
345303013272 Frigidaire Oven Nut
35SPUD NO 50
36NUT SPECIAL
37WCI 072T821F01
