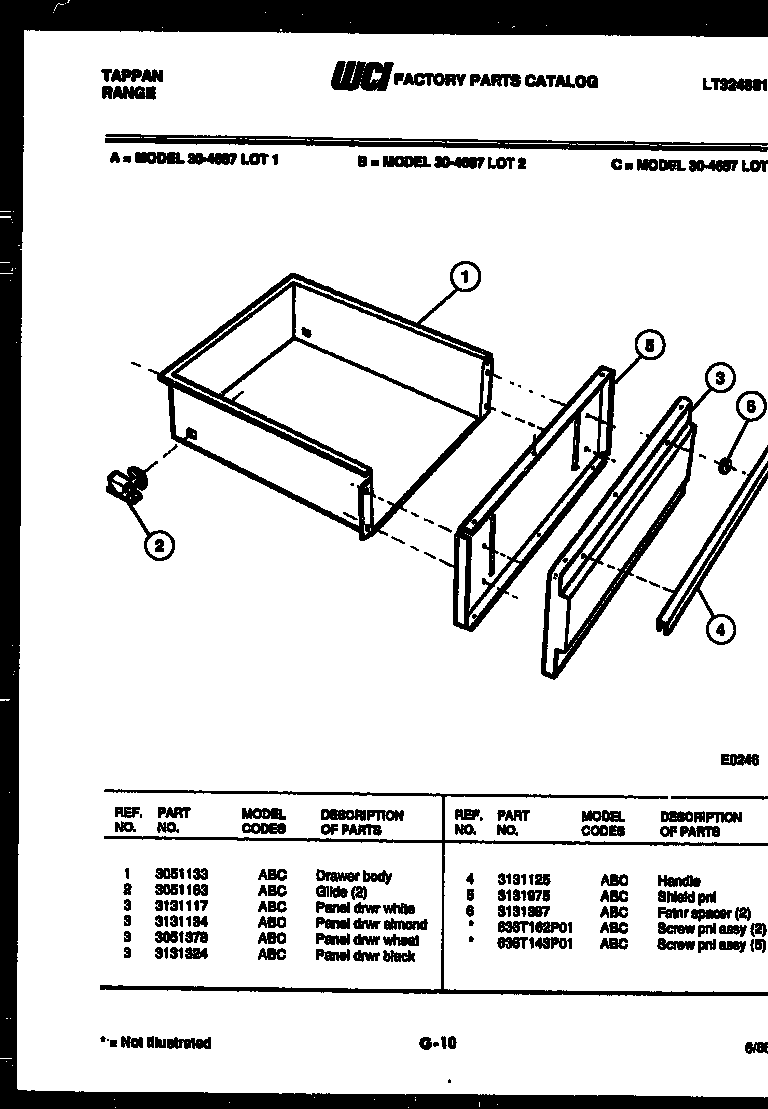

30-4687-23-02 07 – DRAWER PARTS

Written by

Products

Position	Product
*87647	5303300265 Frigidaire Oven Screw
*87647	SCREW PNL ASSY (2)
1	WCI 3051133
2	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
3	PANEL – BROILER ALMD
3	PANEL, DRWR., BLACK
4	WCI 3131125
5	SHIELD-PNL
6	FSTNR, SPACER (2)
