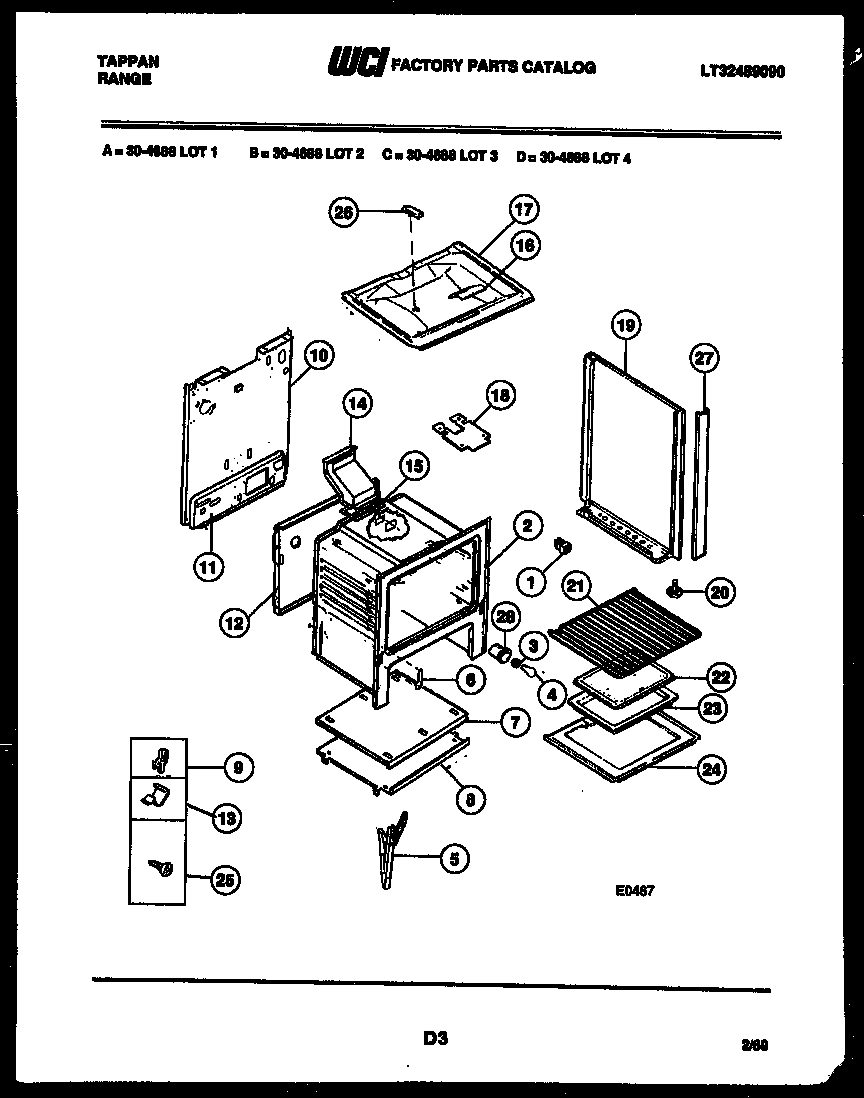

30-4688-00-04 05 – BODY PARTS

Products

Position	Product
1	WCI 665T188P02
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
7	WCI 3131951
8	WCI 3131313
9A	5304534000 Frigidaire Cord
9	5303284616 Frigidaire Range Bulb Clip Thermostat
10	WCI 3131567
11	WCI 3131590
12	WCI 3131316
13	CLIP, WIRE
14	WCI 3131931
15	316542102 Frigidaire Flue Gasket
15B	WASHER-BLACK
15A	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
16	WCI 3131101
17	WCI 095T030F02-86
18	SHIELD-OVN TOP
19A	WCI 3201000
19	WCI 3201001
19	B/S-RH-(WHITE)
19A	B/S-LH-(WHITE)
20	WCI 636M004P01
21	316067902 Frigidaire Oven Rack
22	WCI 3131356
23	PAN, BROILER
24C	FSTNR-POWER CORD (NON-ILLUSTRATED)
24B	3131903 Frigidaire Door/Drawer Bumper
24A	316064600 Frigidaire Oven Support
24	WCI 058T036F02-86
24E	WCI 3131201
24D	WCI 3131246
24F	WCI 655T434F01
25A	COVER-BURNER BOX
25	316282700 Frigidaire Oven Screw
26	WCI 3015371
27	TRIM-VERT B/S (2)
28	TUBE-OVEN LIGHT
