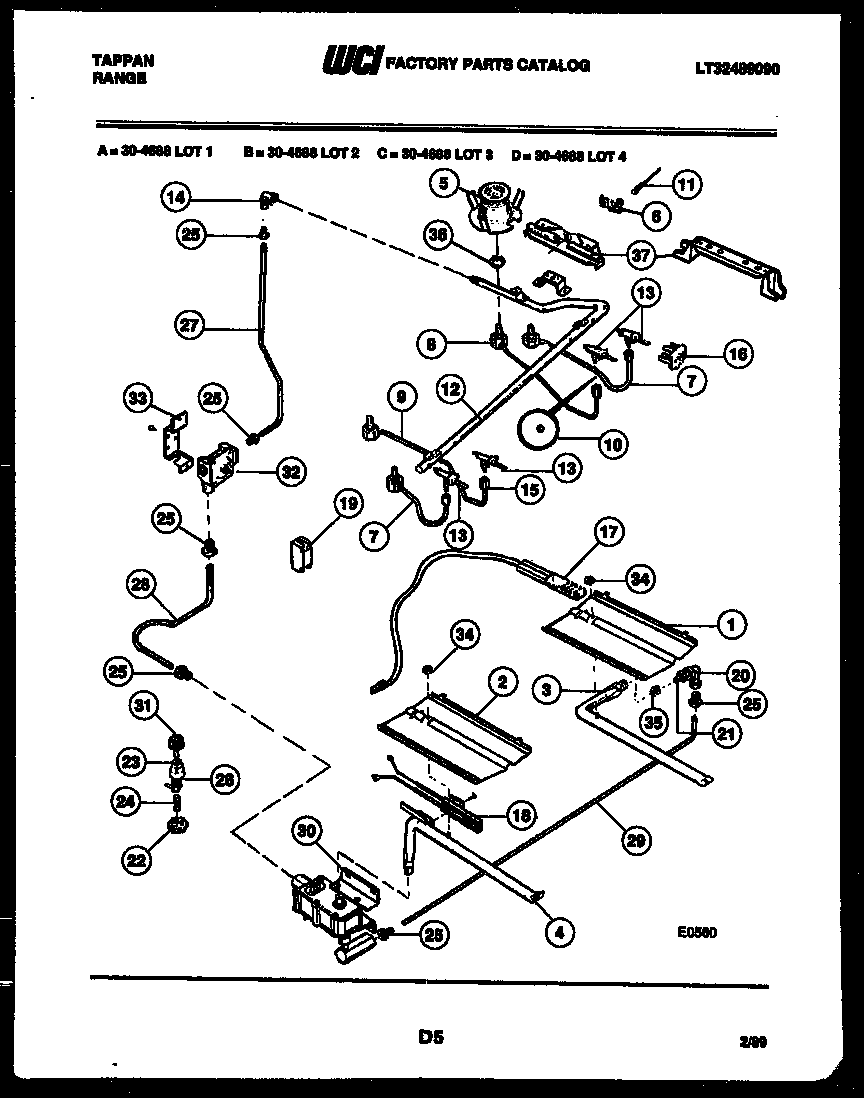

30-4688-08-04 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 3131283
2WCI 3131327
3WCI 079T028P01
4WCI 3131634
5WCI 079T032S02
6WCI 3018617
7BURNER TUBE-RF & LF
8WCI 079T033H02
9WCI 079T033H03
10WCI 247T074P01
11IGNITER-TOP BURNER (4)
13WCI 3017846
14ELBOW 1/2 NP TO 9/16-24
14ANUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 455T008P02
21NUT
25FITTING-LOXIT (8)
26WCI 597T034P03
27TUBE-REGUL TEE
28TUBE-VALVE TO REGUL
29TUBE-VALVE TO MIXER ELBOW
30A5300809968 Frigidaire Dishwasher P-1 Washer
305303208499 Frigidaire Safety Gas Valve
31CAP-FUSE RECEPT.
325303935125 Frigidaire Pressure Regulator
33316091600 Frigidaire Oven Bracket
345303013272 Frigidaire Oven Nut
35SPUD NO 50
36NUT SPECIAL
36AWCI 072T821F01
