30-4688-23-01 02 – BACKGUARD – Aparts

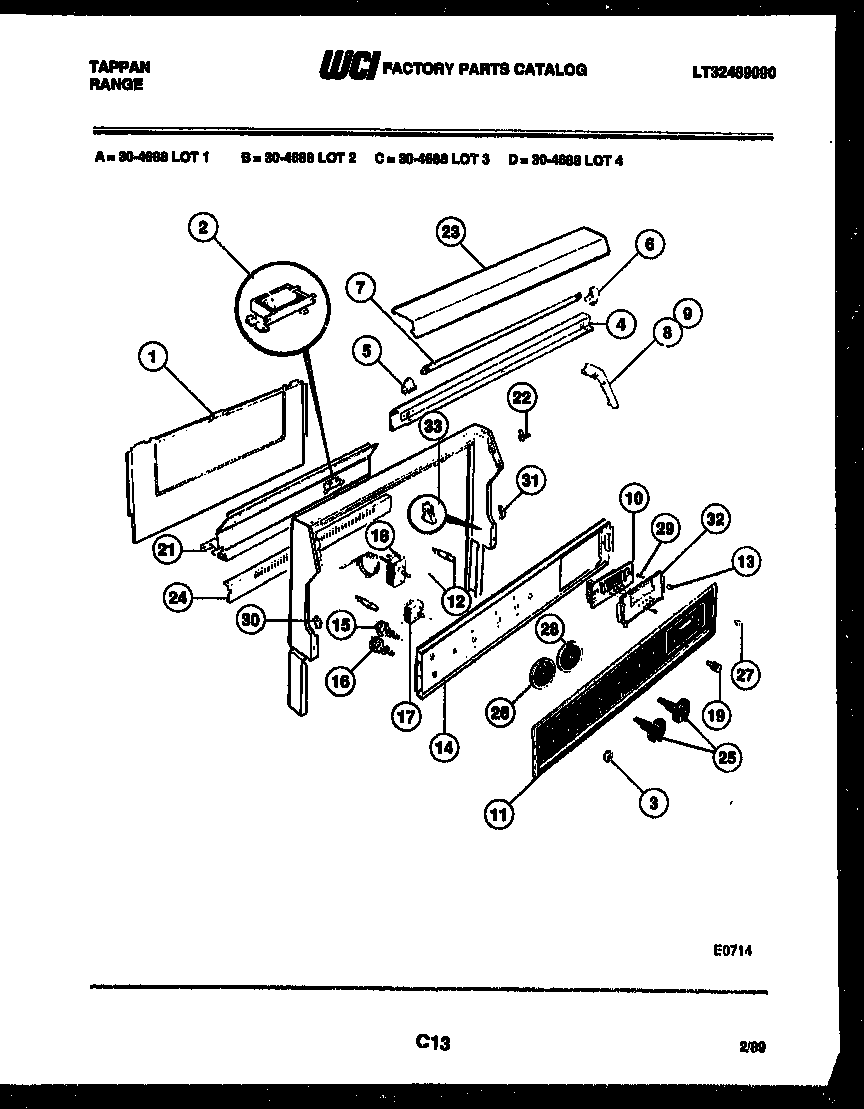

30-4688-23-01 02 – BACKGUARD

Products

Position	Product
1	SHIELD-BACKGUARD,REAR WALL
2	WCI 3051115
3	WCI 045T071P01
5	RECEPTACLE-FLU LT LH
6	RECEPTACLE-FLU LT RH
7	BULB-FLUOR
8	CAP, END LH
9	CAP, END RH
10	ELECTRIC CLOCK
11	WCI 3015144
12	OVEN LIGHT INDICATOR
13	WCI 358T206P01
14	PLATE INSTRUMENT MOUNTING
15	SW.-FLUOR. LT.
16	SWITCH-OV LT
17	SWITCH SELECTOR 4 POS
18	WCI 3051323
19	BUTTON CLOCK (3)
20	WCI 3016852
21	TRIM-SPLASHER
22	FASTENER, GLASS (2)
23	WCI 3131466
24	WCI 3131241
25	WCI 3051188
26	WCI 3131945
27	NUT - DECOR (2)
28A	WCI 655T444P01
28	DIAL THERMO
29	SHAFT-ELEC. CLK.
30	WCI 123T120P03
31A	NUT (10-24) (NON-ILLUSTRATED)
31	WCI 123T120P04
32	WCI 3131556
32A	WCI 3051304
33	WCI 3131277
