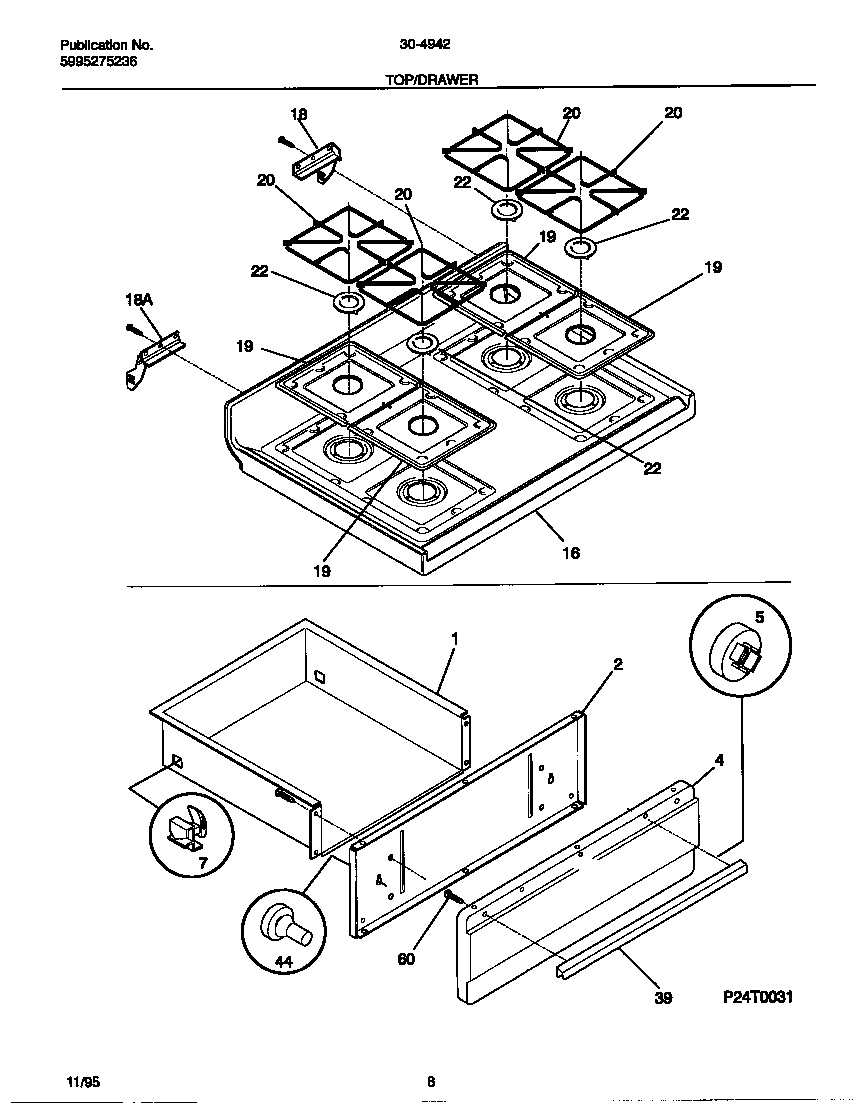

30-4942-00-07 05 – TOP/DRAWER

30-4942-00-07 05 – TOP/DRAWER

Written by

in

30-4942-00-07 05 – TOP/DRAWER

Products

PositionProduct
*06406RIVET-POP, WARING-PLATE
*06408131243700 Frigidaire Screw
*06407WCI 5303281584
*06409WCI 5303288574
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 5303301546
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19WCI 316011401
20WCI 316088900
22316010901 Frigidaire Burner Cap P1
39WCI 316019506
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
