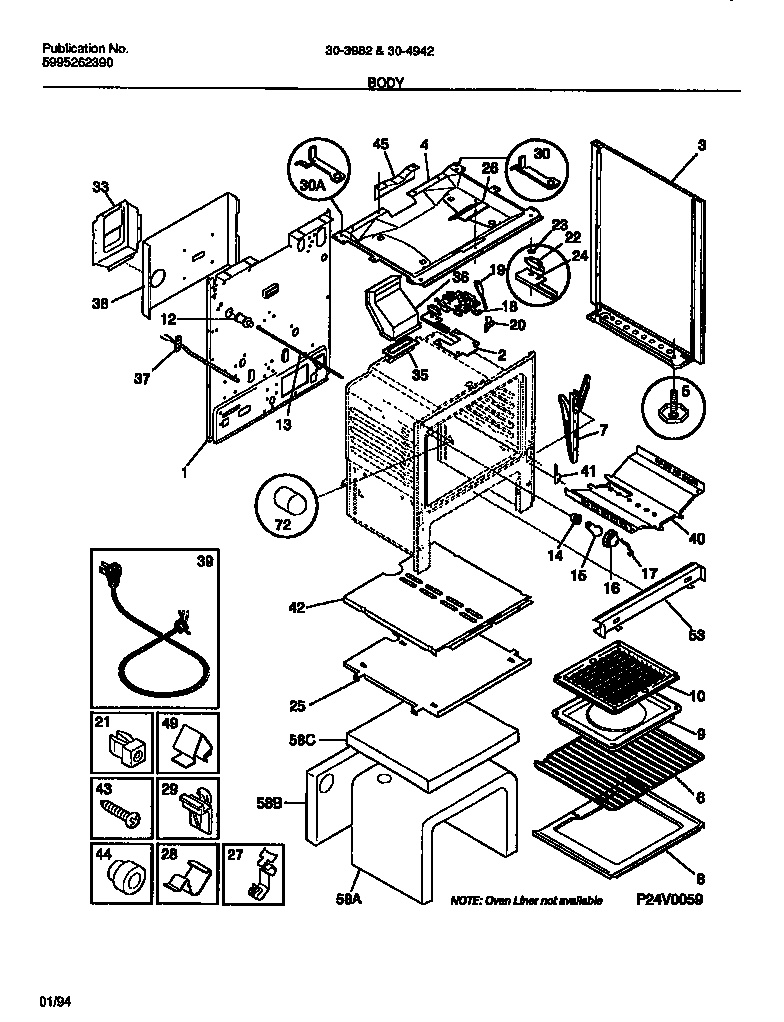

30-4942-23-05 05 – BODY

30-4942-23-05 05 – BODY

Written by

in

30-4942-23-05 05 – BODY

Products

PositionProduct
*23927HARNESS-WIRING, MAIN (NON-ILLUSTRATED)
*23934FASTENER-EDGE MTG (NOT ILLUSTRATED)
*23933WCI 08067961
1WCI 316029410
2SHIELD-OVN TOP
3WCI 316081005
3WCI 316081004
3WCI 08067992
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
4WCI 316011905
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5316116000 Frigidaire Screw
5WCI 3934058
6316067902 Frigidaire Oven Rack
7WCI 316007002
8316064600 Frigidaire Oven Support
8BTTM-OVEN
9WCI 316073800
10WCI 316073900
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 5303015453
18SHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 08013188
20WCI 3203218
21SPACER-BODYSIDE, (8)
22STUD SPACER (2) (NON-ILLUSTRATED)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316035301
395304515659 Frigidaire Oven Power Cord
40SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53SHIELD-FRONT
5308067973 Frigidaire 0 Insulation
58BWCI 316054200
58CINSULATION, OVEN TOP
58AINSULATION, OVEN WRAPPER
72COVER-LIGHT/SWITCH ROD
