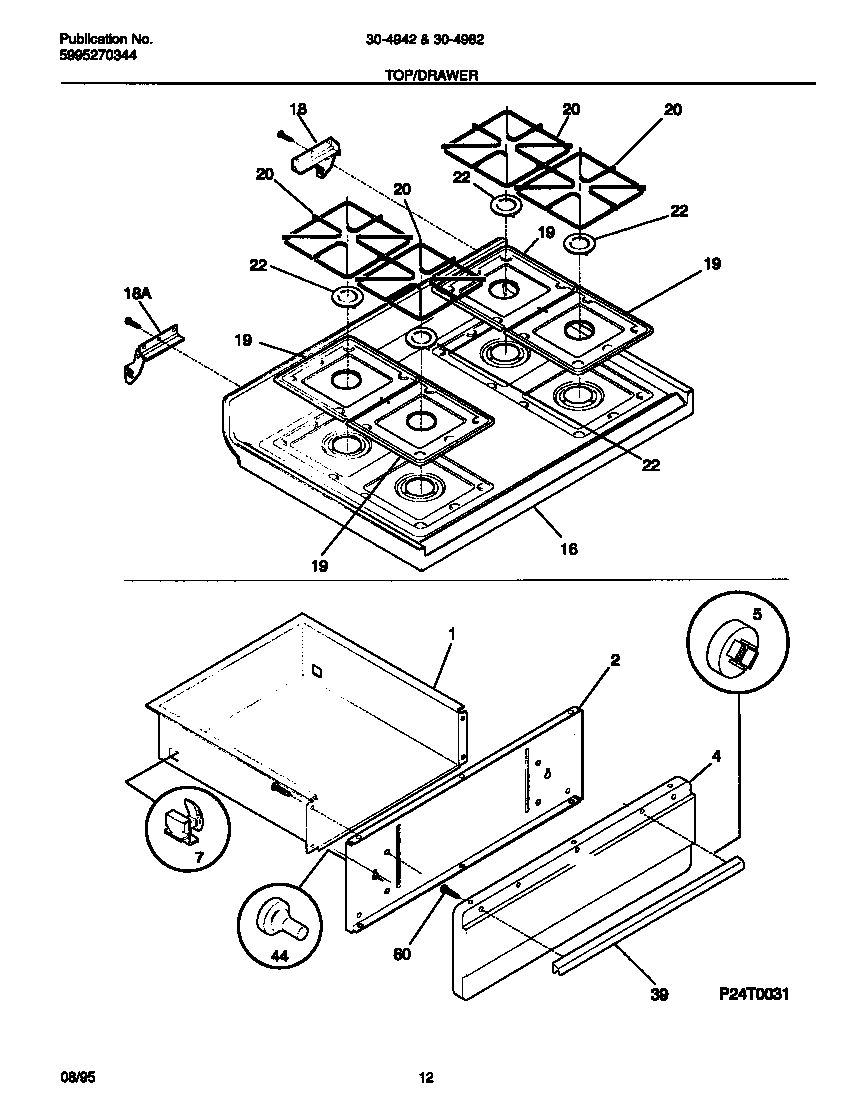

30-4942-23-06 06 – TOP/DRAWER

Products

Position	Product
*23889	RIVET-POP, WARING-PLATE
*23892	WCI 5303288574
*23891	131243700 Frigidaire Screw
*23890	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056206
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303301547
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
19	WCI 316011401
20	WCI 5303269632
22	316010901 Frigidaire Burner Cap P1
39	HANDLE-DRAWER, ALMOND
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
