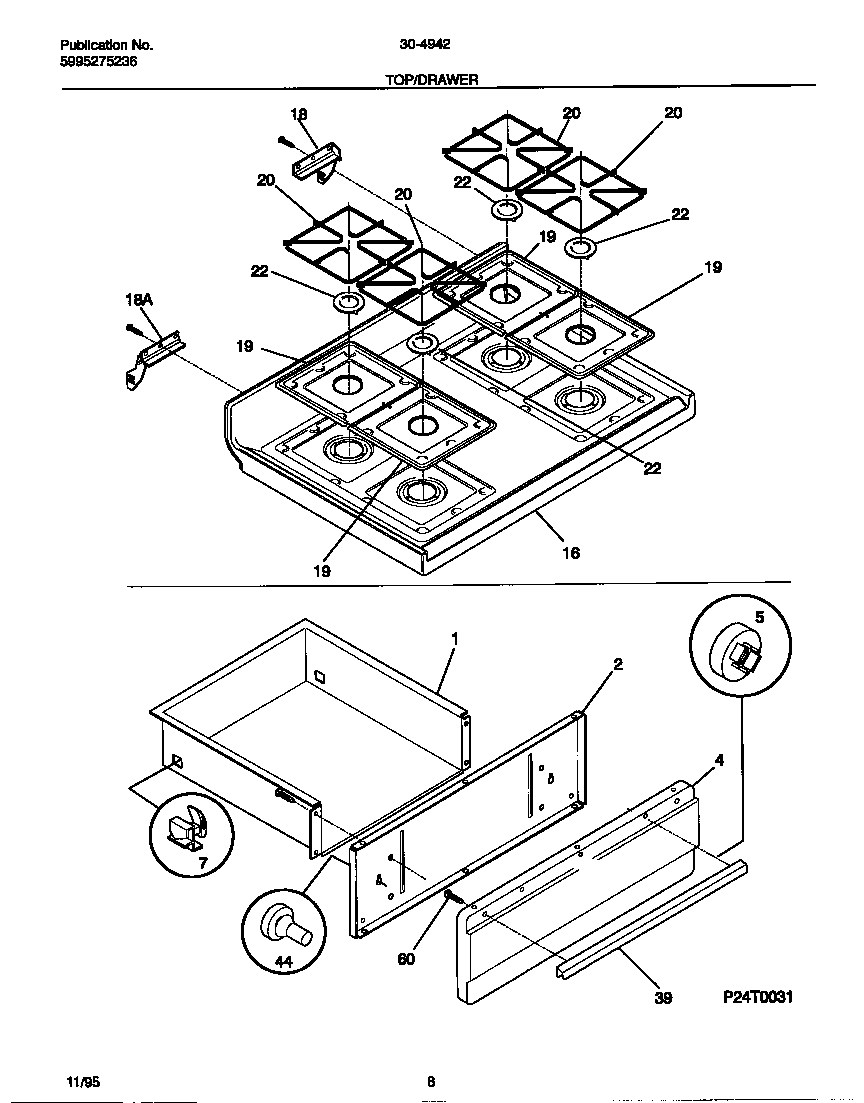

30-4942-23-07 05 – TOP/DRAWER

Products

Position	Product
*06406	RIVET-POP, WARING-PLATE
*06408	131243700 Frigidaire Screw
*06407	WCI 5303281584
*06409	WCI 5303288574
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316056206
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	WCI 5303301547
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19	WCI 316011401
20	WCI 316088900
22	316010901 Frigidaire Burner Cap P1
39	WCI 316019507
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
