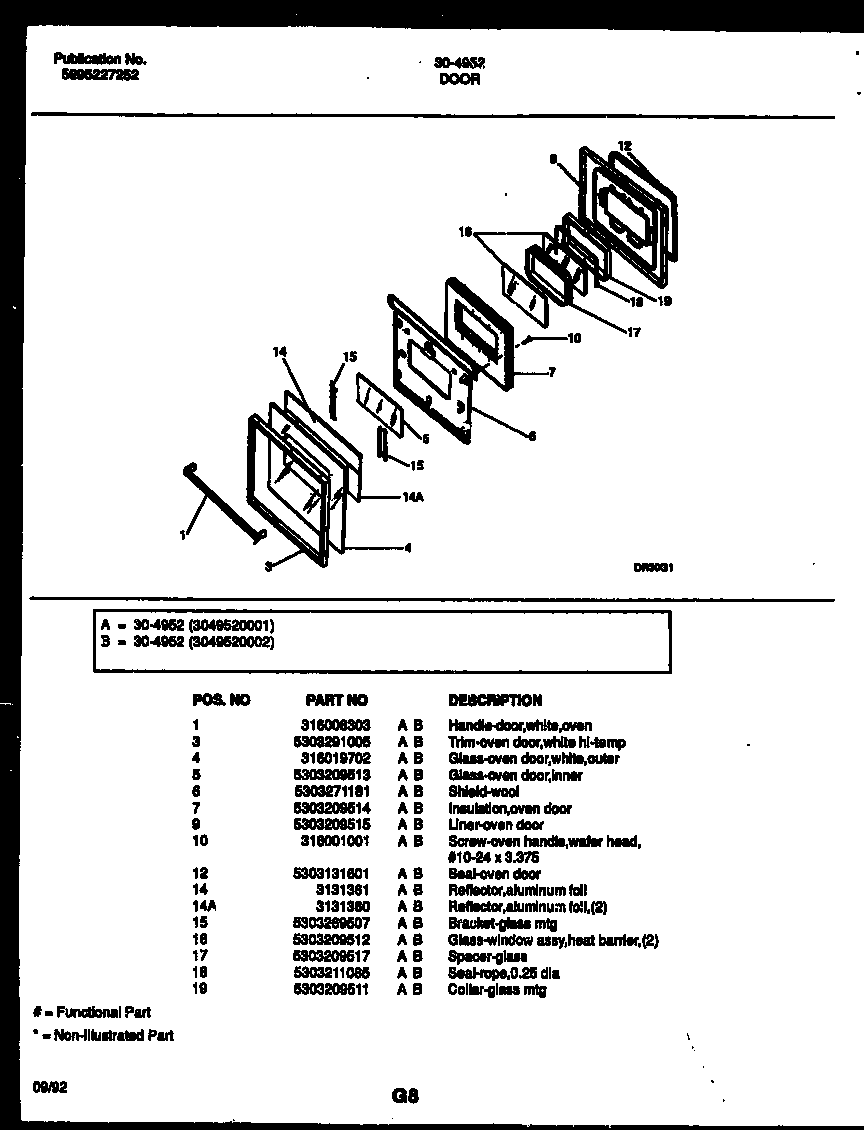

30-4952-00-02 07 – DOOR PARTS

Products

Position	Product
1	HANDLE-WHITE
3	WCI 5303291005
4	WCI 316019702
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION, WHITE
7	INSULATION-OVEN DOOR
9	WCI 5303209515
10	SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
12	5303131601 Frigidaire Oven Seal
14	ALUM FOIL-B/G GLASS
14A	5303208655 Frigidaire Reflector Assembly
15	BRKT GLASS
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 5303209511
