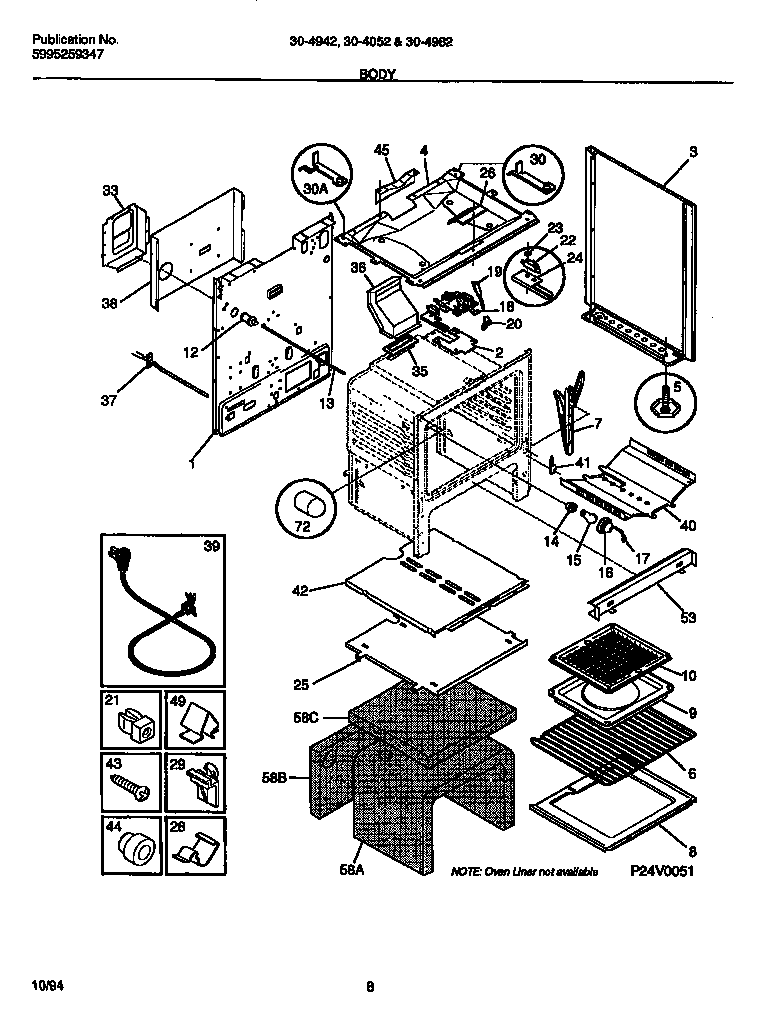

30-4952-00-03 05 – BODY

Products

PositionProduct
1WCI 316029405
2SHIELD-OVN TOP
3BWCI 08067992
3PNL-B/S-RH-WHITE
3CSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3APNL-B/S-LH-WHITE
4WCI 316011905
5SCREW-LEVELING
5AWCI 3934058
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
9WCI 316073800
10WCI 316073900
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18ASHIELD-LATCH (NON-ILLUSTRATED)
18WCI 5303015453
19WCI 5303131357
20AWCI 08013188
20WCI 316029200
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
22ASTUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316035301
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
