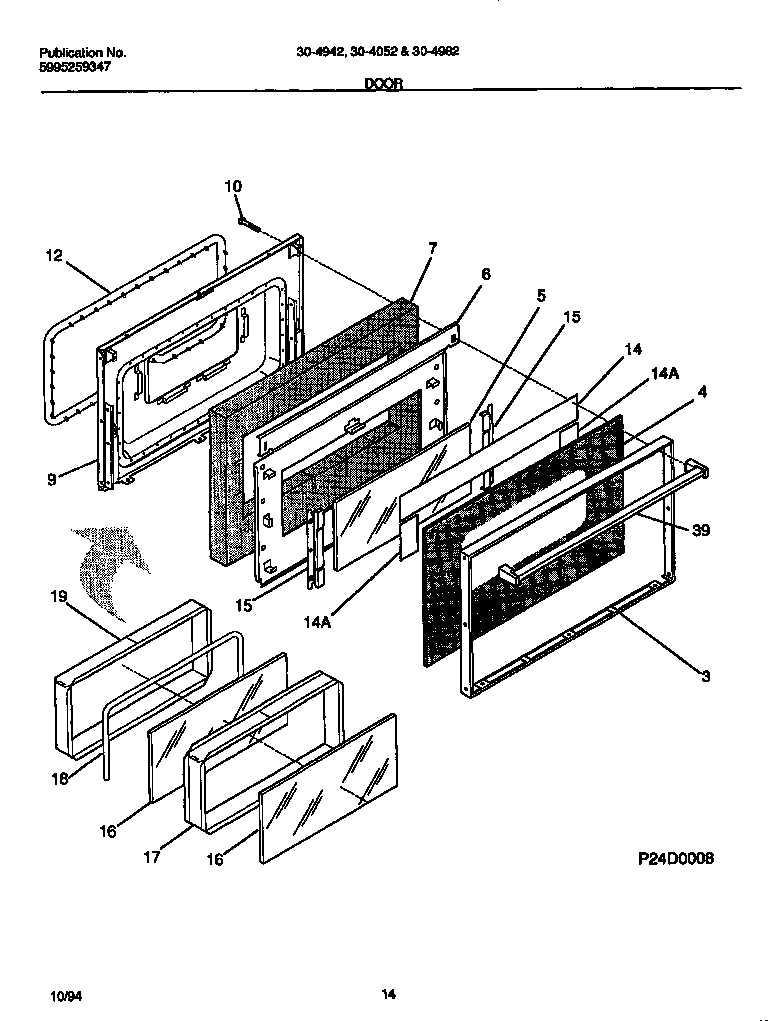

30-4952-00-03 08 – DOOR

Products

Position	Product
*92773	RIVET-POP, WARING-PLATE
*92766	WCI 316065300
*92767	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
3	WCI 316067804
4	WCI 316019718
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION, WHITE
7	INSULATION-OVEN DOOR
9	WCI 316066603
10	SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
12	5303131601 Frigidaire Oven Seal
14A	5303208655 Frigidaire Reflector Assembly
14	ALUM FOIL-B/G GLASS
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
39	WCI 316008301
