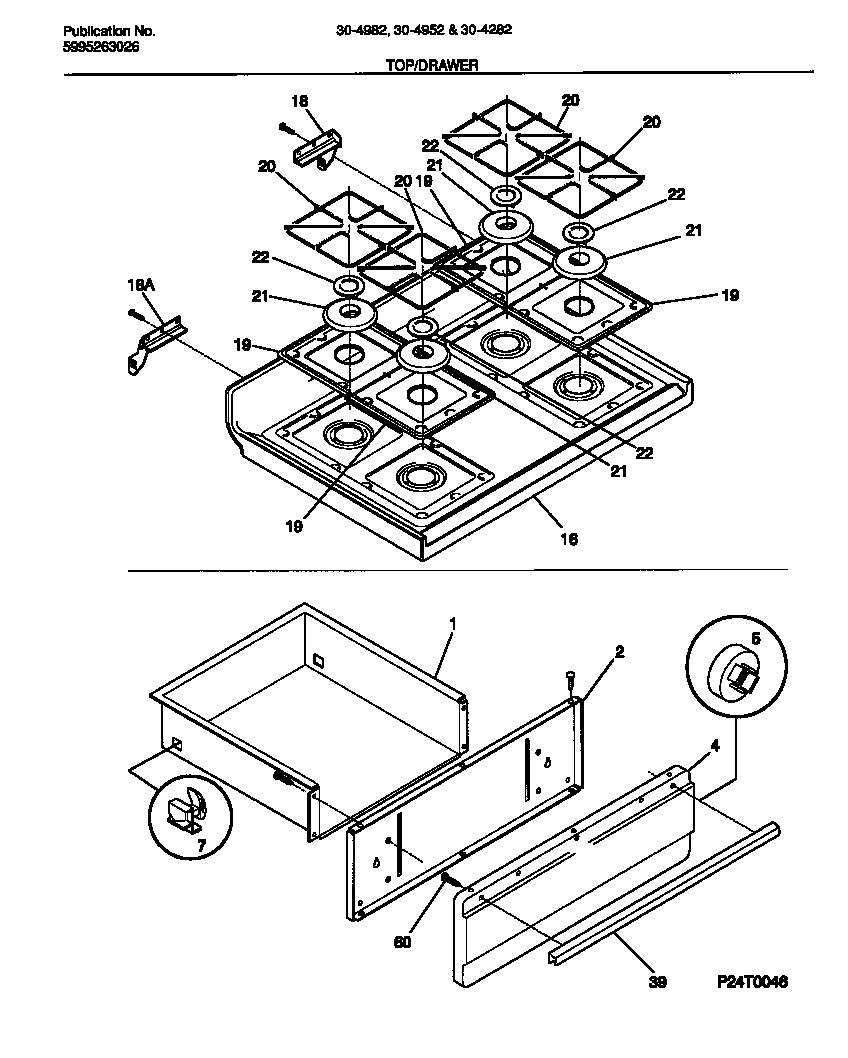

30-4952-00-04 06 – TOP, DRAWER

Products

Position	Product
*55652	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PANEL-BROILER, WHITE
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16	WCI 5303301546
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
18	131243700 Frigidaire Screw
19	WCI 316011400
20	WCI 316050400
21	TRIM RING, BURNER, DARK GREY
22	WCI 316010903
39	HANDLE-DRAWER, WHITE
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
