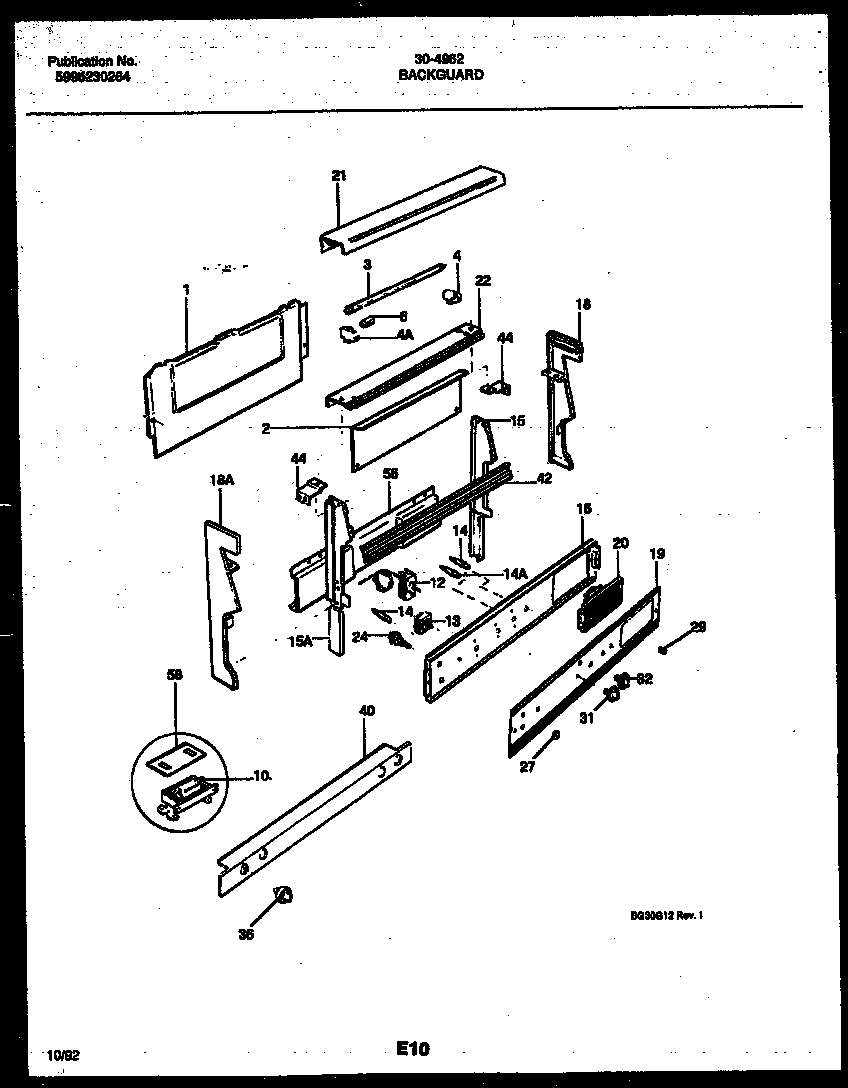

30-4962-00-01 02 – BACKGUARD

30-4962-00-01 02 – BACKGUARD

Written by

in

30-4962-00-01 02 – BACKGUARD

Products

PositionProduct
1SHIELD-BACKGUARD, REAR WALL
2WCI 316038801
3BULB-FLUOR
4ARECEPTACLE-LAMP, LH
4RECEPTACLE-LAMP, RH
6STARTER-LAMP
10WCI 5303051115
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14WCI 5308037896
14AINDICATOR LIGHT-LOCK (1)
15AWCI 5303288574
15WCI 316023102
15AWCI 316023103
16WCI 316042601
18END CAP, RH
18AEND CAP, LH
19AWCI 5303272836
19WCI 316028302
20ELECTRICAL CLOCK
21WCI 316015300
22WCI 316038600
24WCI 5303200479
27WCI 5303011507
29KNOB-CLOCK
31WCI 5303286099
32WCI 5303286098
36KNOB-TOP VALVE, (4)
40WCI 5303208492
42WCI 5303272839
44WCI 316038501
56WCI 316014601
58WCI 316043400
