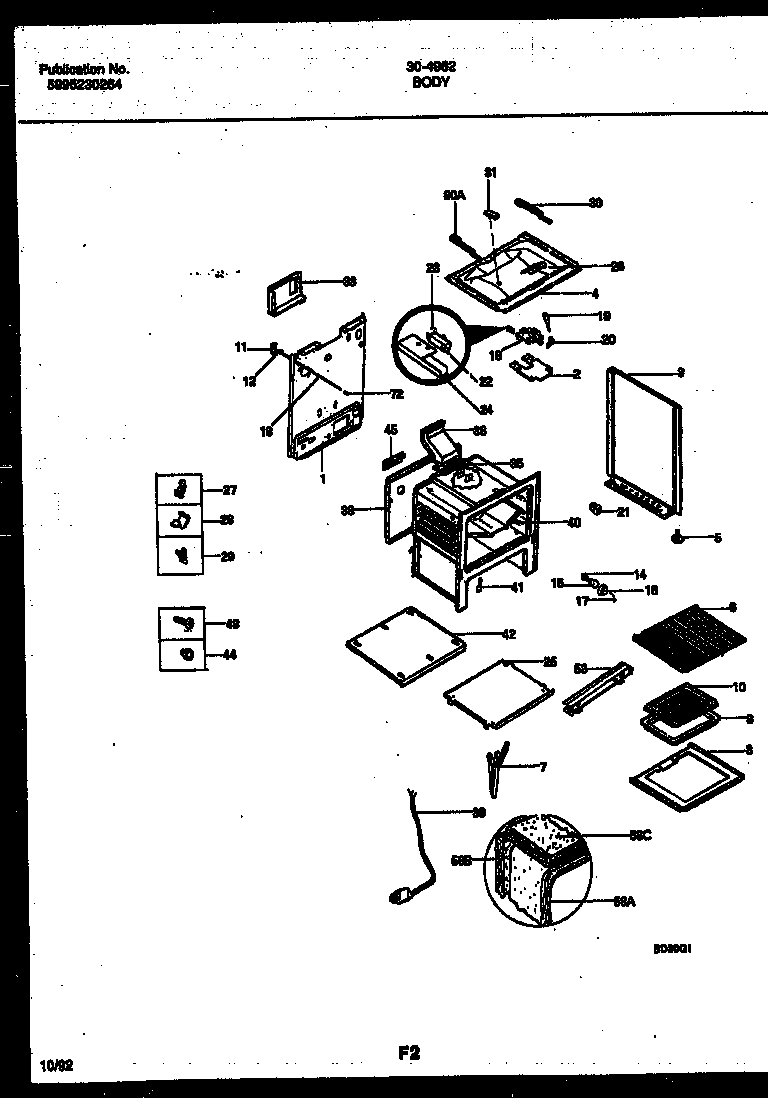

30-4962-00-01 05 – BODY PARTS

Products

Position	Product
30A	BRACKET-HINGE, MAIN TOP, LH
30	BRACKET-HINGE, MAIN TOP RH
31	WCI 3015371
33	SHIELD, REAR WALL
35	316542102 Frigidaire Flue Gasket
36	WCI 5303272844
38	WCI 316035301
39	5304515659 Frigidaire Oven Power Cord
39A	WCI 08067961
40	WCI 3200836
41	WCI 3131570
42	SHIELD-HEAT UPPER
43	316282700 Frigidaire Oven Screw
44	3131903 Frigidaire Door/Drawer Bumper
45	WCI 08068018
53A	08067973 Frigidaire 0 Insulation
53	SHIELD-FRONT
58C	INSULATION, OVEN TOP
58B	INSULATION OVEN BACK (NON-ILLUSTRATED)
58A	INSULATION, OVEN WRAPPER
72	COVER-LIGHT/SWITCH ROD
