30-4972-00-01 05 – BODY PARTS

30-4972-00-01 05 – BODY PARTS

Written by

in

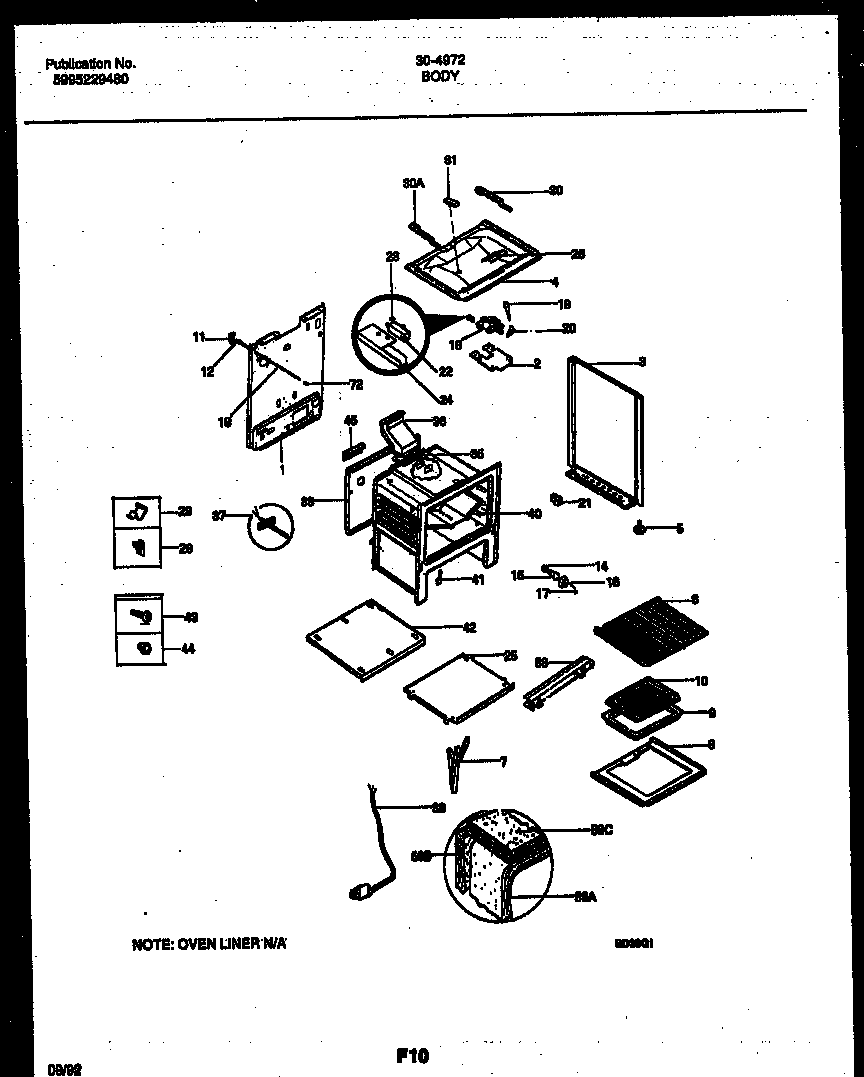

30-4972-00-01 05 – BODY PARTS

Products

PositionProduct
31WCI 3015371
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316035301
39AWCI 08067961
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53SHIELD-FRONT
53A08067973 Frigidaire 0 Insulation
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
58CINSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
