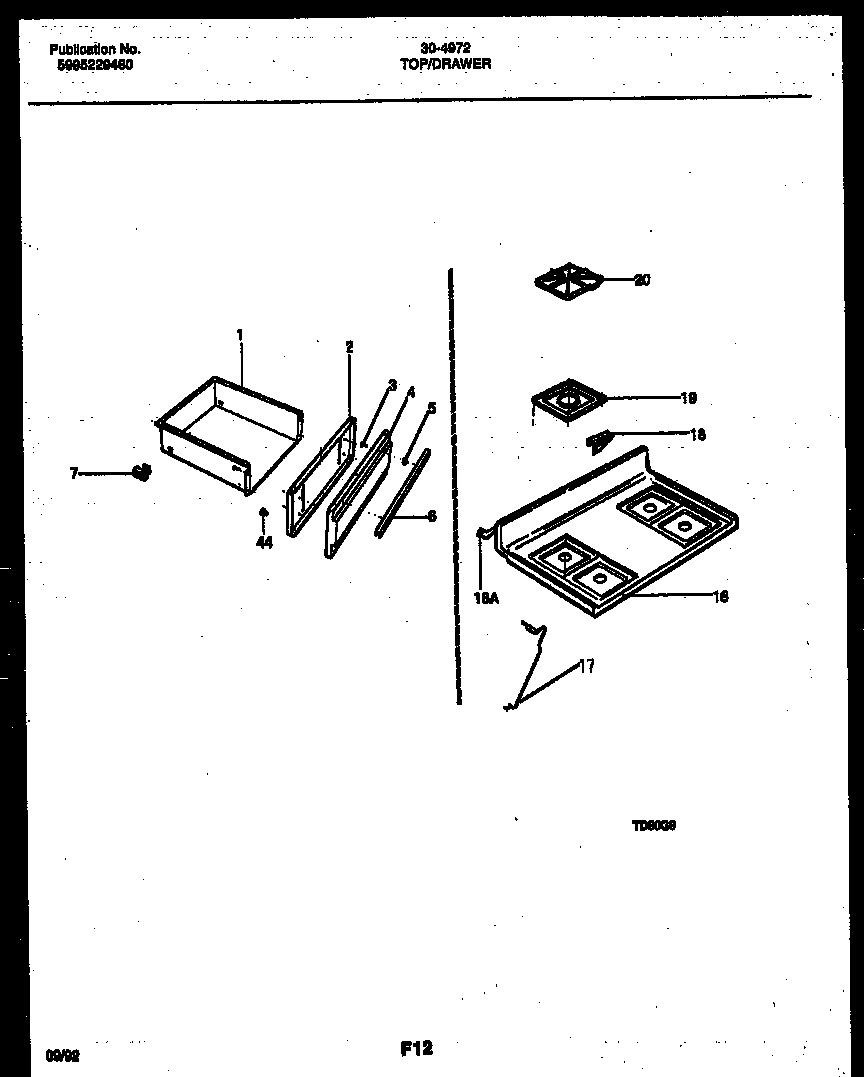

30-4972-00-01 06 – COOKTOP AND DRAWER PARTS

Products

Position	Product
*80182	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
3	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4	PNL-DRAWER (WHTE)
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
6	HANDLE-DRAWER, WHITE
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303934077
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
19	WCI 316011403
20	WCI 5303272852
44	3131903 Frigidaire Door/Drawer Bumper
