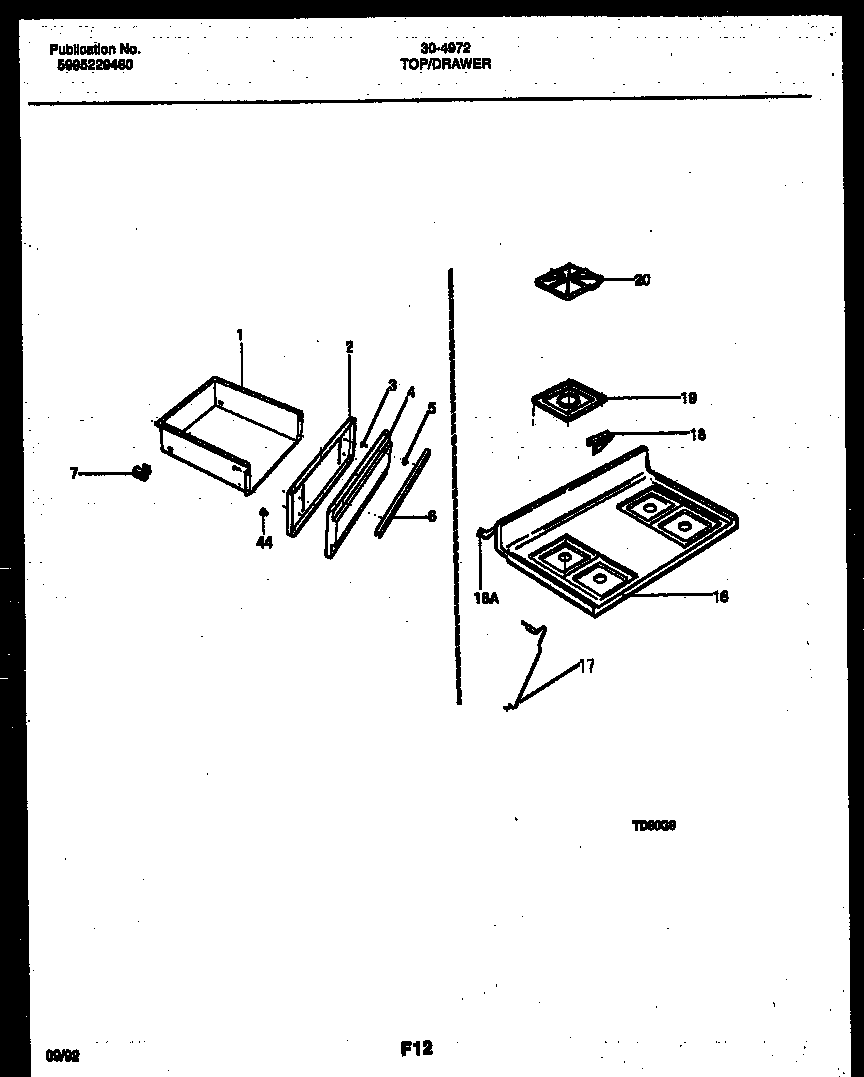

30-4972-23-01 06 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*80182WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
3SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4PANEL – BROILER ALMD
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
6HANDLE-DRAWER, ALMOND
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303934078
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
19WCI 316011403
20WCI 5303272852
443131903 Frigidaire Door/Drawer Bumper
