30-4979-08-01 02 – BACKGUARD

30-4979-08-01 02 – BACKGUARD

Written by

in

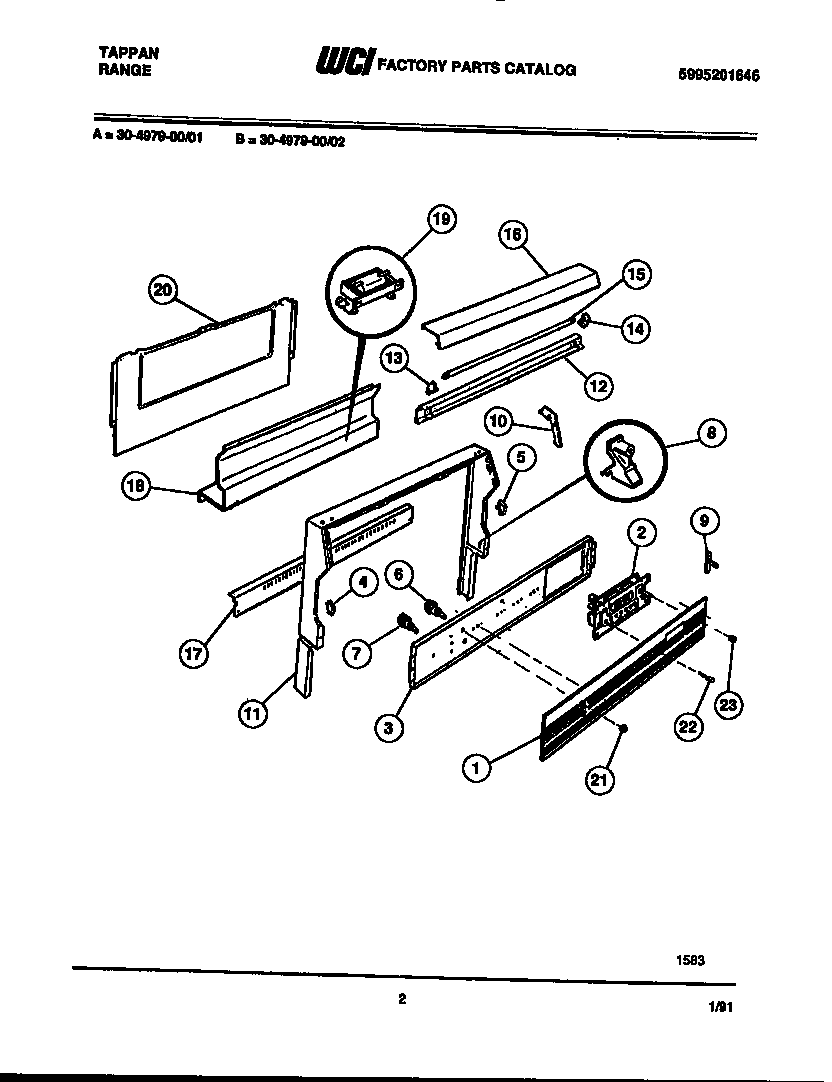

30-4979-08-01 02 – BACKGUARD

Products

PositionProduct
*314793131903 Frigidaire Door/Drawer Bumper
1WCI 3205433
2WCI 3204643
3PLATE – INST MOUNTING
4CAP-LH
5CAP-RH
6SWITCH FL LIGHT
7WCI 5303200479
8SUPPORT-BACKGUARD,(2)
9ATRIM-GLASS RETAINER,RH
9TRIM-GLASS RETAINER,LH
10AWCI 3204610
10WCI 3204609
11WCI 3204862
12WCI 3131277
13RECEPTACLE-FLU LT RH
14RECEPTACLE-FLU LT LH
15BULB-FLUOR
16WCI 3204614
17WCI 3131241
19WCI 5303051115
20SHIELD-BACKGUARD,REAR WALL
21WCI 5303011507
22BUTTON ELECTRONIC (8)
23KNOB ELECT OVEN CONTROL (1)
