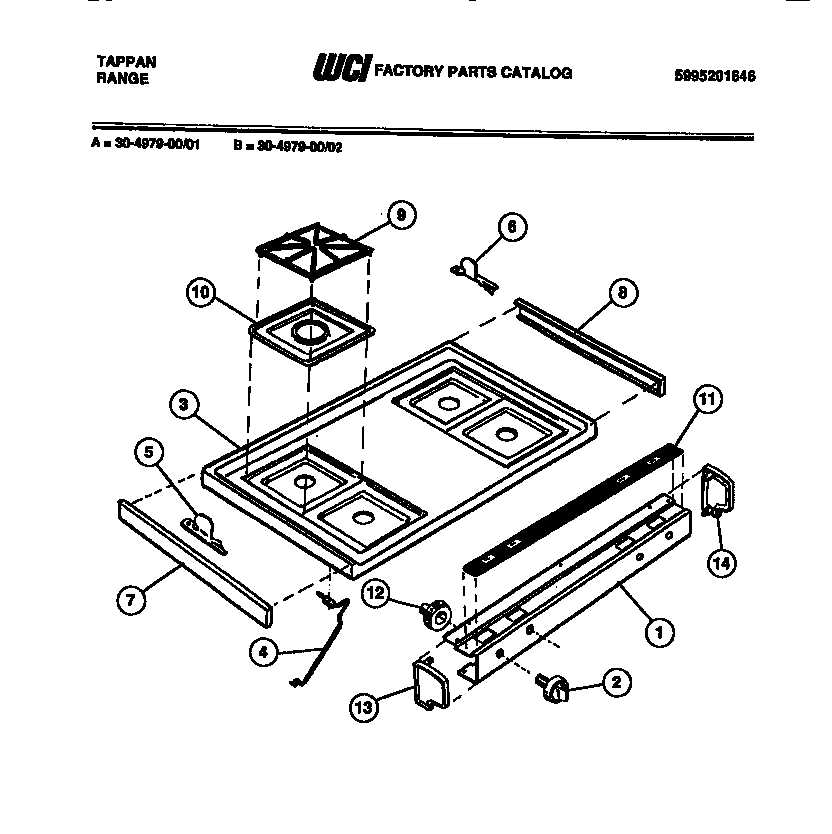

30-4979-23-01 03 – COOKTOP PARTS

30-4979-23-01 03 – COOKTOP PARTS

Written by

in

30-4979-23-01 03 – COOKTOP PARTS

Products

PositionProduct
*31480RETAINER WIRE
1WCI 3205436
2KNOB-VALVE TOP (4)
3WCI 3934050
4ROD – MAINTOP SUPT.
5BRACKET-HINGE,MAIN TOP LH
6BRACKET-HINGE,MAIN TOP RH
7WCI 3051354
8WCI 3051355
9GRATE (4)
10WCI 3131299
11GLASS CNTR PANEL
12DIAL-TOP VALVE
13CAP-END-LH
14CAP-END-RH
