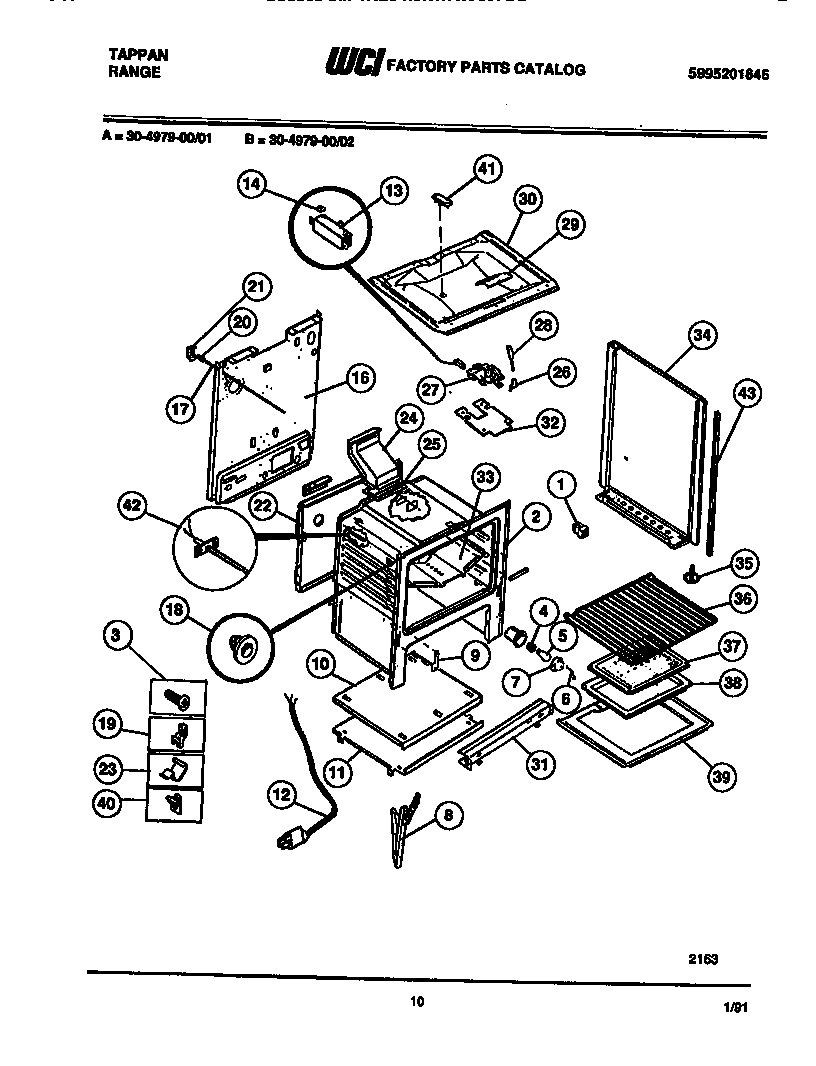

30-4979-23-01 07 – BODY PARTS

30-4979-23-01 07 – BODY PARTS

Written by

in

30-4979-23-01 07 – BODY PARTS

Products

PositionProduct
*31500WCI 191S018F316
3316282700 Frigidaire Oven Screw
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10WCI 3131951
11AWCI 08067992
11WCI 3131313
125304515659 Frigidaire Oven Power Cord
13SWITCH-LATCHING
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303209316
183131903 Frigidaire Door/Drawer Bumper
193203010 Frigidaire Clip
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 5303015597
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
33ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
34APNL-BODYSIDE RH-ALMOND
34PNL-BODYSIDE LH-ALMOND
34PNL B/S – BLACK LH
34APNL B/S – BLACK RH
35SCREW-LEVELING
35AFASTNR-LEVEL LEG (4)
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39FINSULATION, OVEN TOP
39EINSULATION, OVEN WRAPPER
39D08067973 Frigidaire 0 Insulation
39A316064600 Frigidaire Oven Support
39BWCI 08067961
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39BTTM-OVEN
40ASHIELD-OVN TOP
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
40BWCI 3131590
41WCI 3015371
41AANTI-TIP KIT (NOT ILLUSTRATED)
42BSHIELD-LATCH (NON-ILLUSTRATED)
42CWCI 0813188
42AWCI 08068018
425304497424 Frigidaire Oven Temperature Sensor Probe Kit
43TRIM – VERTICAL B/S (2)
