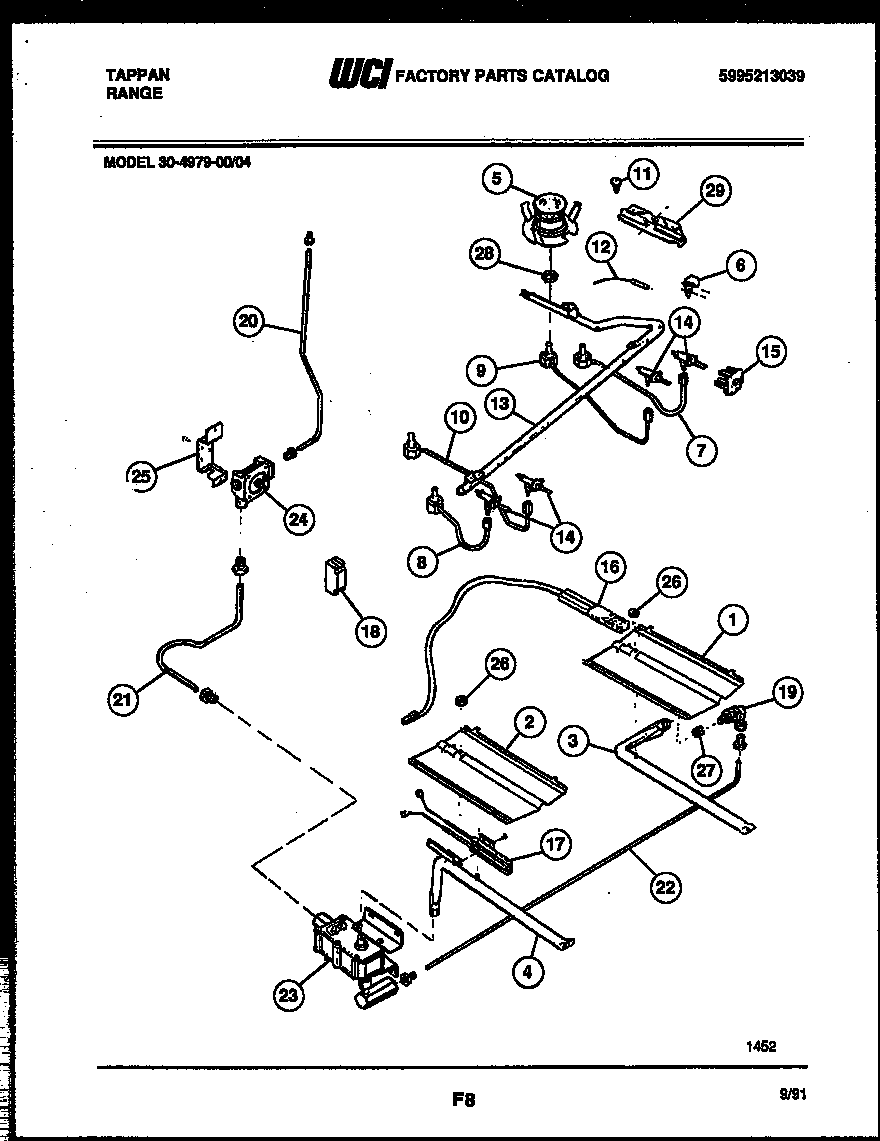

30-4979-23-04 05 – BURNER, MANIFOLD AND GAS CONTROL

30-4979-23-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-4979-23-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER TOP (4)
6WCI 3018617
7TUBE-BURNER, RF
8TUBE-BURNER, LF
9TUBE-BURNER, RR
10TUBE-BURNER, LR
11WCI 3051420
12IGNITER-TOP BURNER (4)
13WCI 5303271924
14VALVE-TOP 3 POS (4)
15SWITCH-IGNITER (4)
165303935068 Frigidaire Flat Igniter
175303935066 Frigidaire Oven Flat Igniter 17" Leads
185303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19WCI 5303208640
20TUBE-ALUM 3/8 REG/MANIFOLD PIPE
21TUBE-VALVE TO REGUL
22TUBE-VALVE TO MIXER ELBOW
235303208499 Frigidaire Safety Gas Valve
245303935125 Frigidaire Pressure Regulator
25316091600 Frigidaire Oven Bracket
265303013272 Frigidaire Oven Nut
27WCI 08068015
28NUT, SPECIAL
29WCI 3206267
