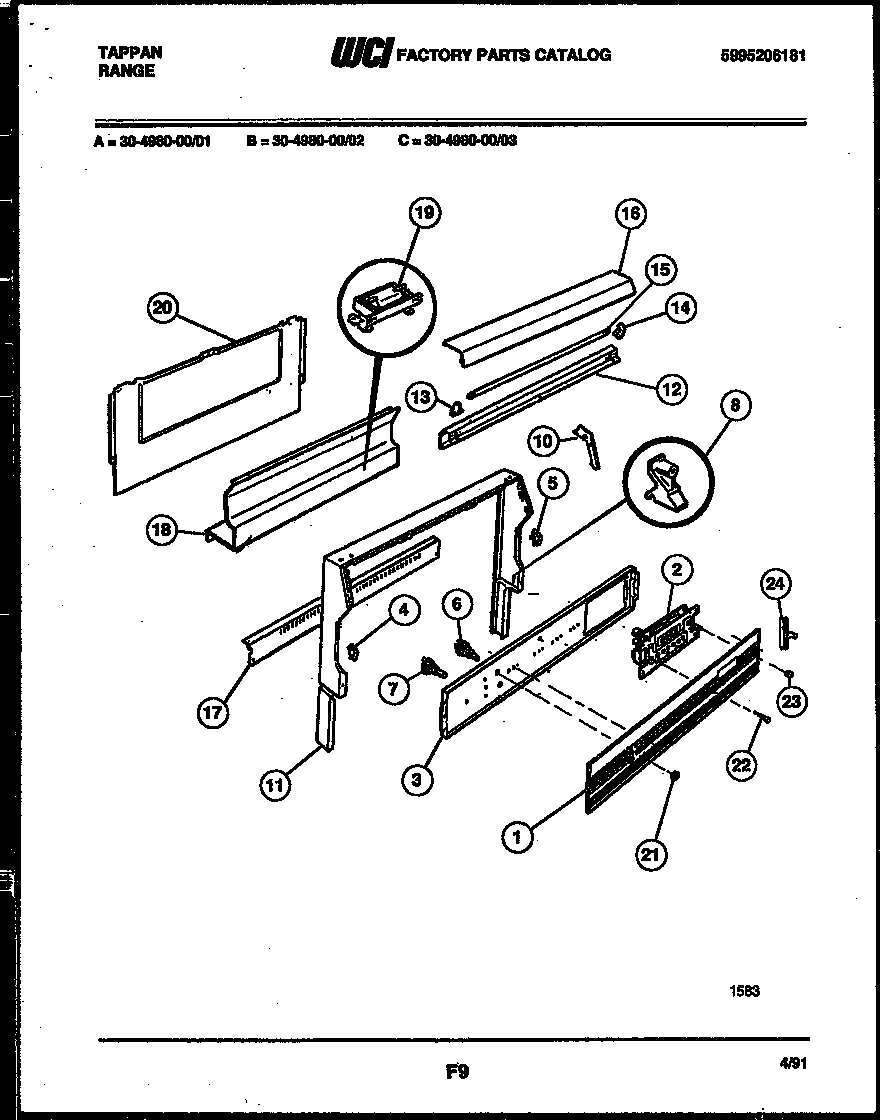

30-4980-00-01 02 – BACKGUARD

30-4980-00-01 02 – BACKGUARD

Written by

in

30-4980-00-01 02 – BACKGUARD

Products

PositionProduct
1WCI 5303269561
2ELECTRONIC CONTROL
3WCI 5303269515
4CAP-LH
5CAP-RH
6SWITCH FL LIGHT
7WCI 5303200479
8SUPPORT-BACKGUARD,(2)
10WCI 3204609
10AWCI 3204610
11WCI 5303269567
12WCI 3131277
13RECEPTACLE-FLU LT RH
14RECEPTACLE-FLU LT LH
15BULB-FLUOR
16WCI 3204614
17WCI 3131241
18WCI 3206279
19WCI 5303051115
20SHIELD-BACKGUARD,REAR WALL
21WCI 5303011507
22BUTTON ELECTRONIC (8)
23KNOB ELECT OVEN CONTROL (1)
24TRIM-GLASS RETAINER,RH
24TRIM-GLASS RETAINER,LH
