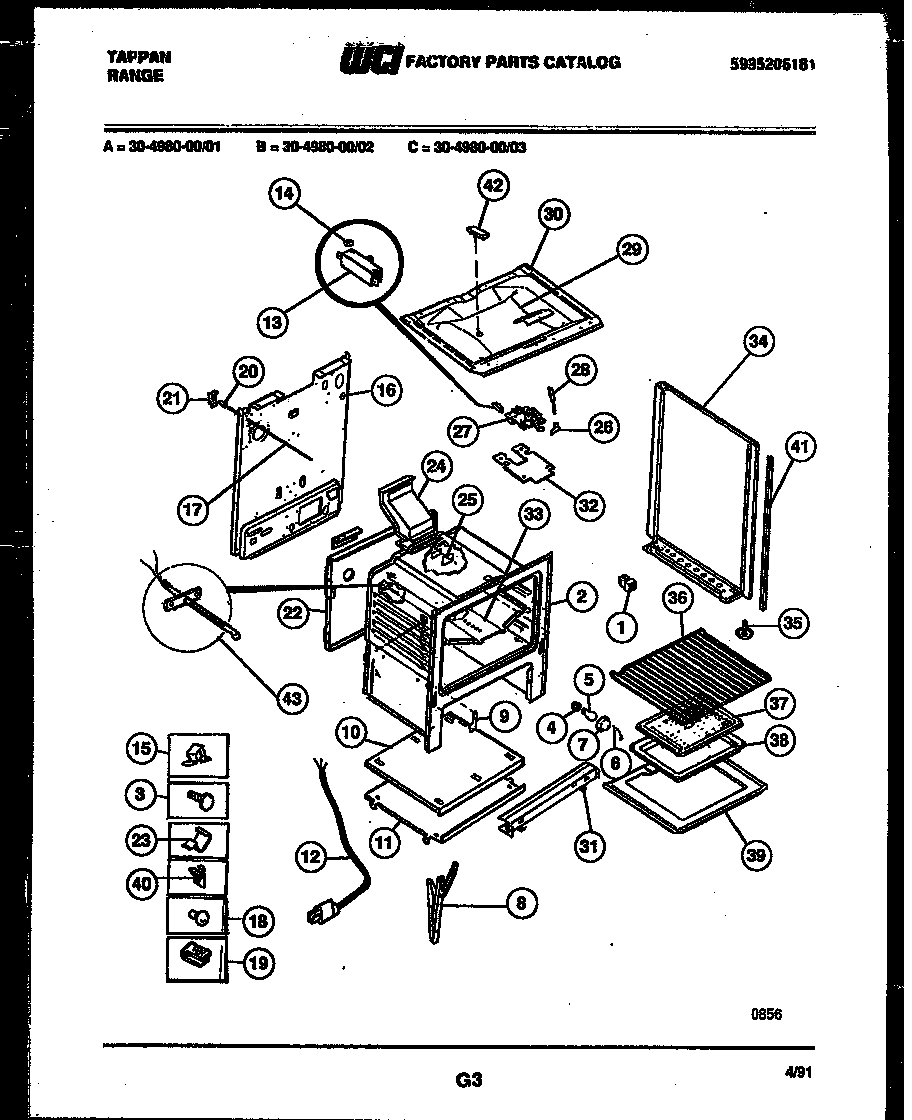

30-4980-00-03 07 – BODY PARTS

30-4980-00-03 07 – BODY PARTS

Written by

in

30-4980-00-03 07 – BODY PARTS

Products

PositionProduct
*52823WCI 08068018
*52823ANTI-TIP KIT (NOT ILLUSTRATED)
*52823WCI 19100200014
1SPACER-BODYSIDE, (8)
3316282700 Frigidaire Oven Screw
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10SHIELD-HEAT UPPER
11AWCI 08067992
11WCI 3131313
125304515659 Frigidaire Oven Power Cord
13SWITCH-LATCH
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
153205821 Frigidaire Clip
16WCI 3203082
17WCI 5303209316
183131903 Frigidaire Door/Drawer Bumper
193203010 Frigidaire Clip
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
25BWCI 08013188
25ASHIELD-LATCH (NON-ILLUSTRATED)
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 5303269487
31SHIELD-FRONT
32SHIELD-LATCH
33ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
33WCI 3200836
34WCI 5303269546
34AWCI 5303269544
34PNL-B/S-LH-WHITE
34APNL-B/S-RH-WHITE
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39BWCI 08067961
39EINSULATION, OVEN WRAPPER
39BTTM-OVEN
39A316064600 Frigidaire Oven Support
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39D08067973 Frigidaire 0 Insulation
39FINSULATION, OVEN TOP
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
41ASHIELD-OVN TOP
41BWCI 5303269502
41TRIM – VERTICAL B/S (2)
42WCI 3015371
435304497424 Frigidaire Oven Temperature Sensor Probe Kit
