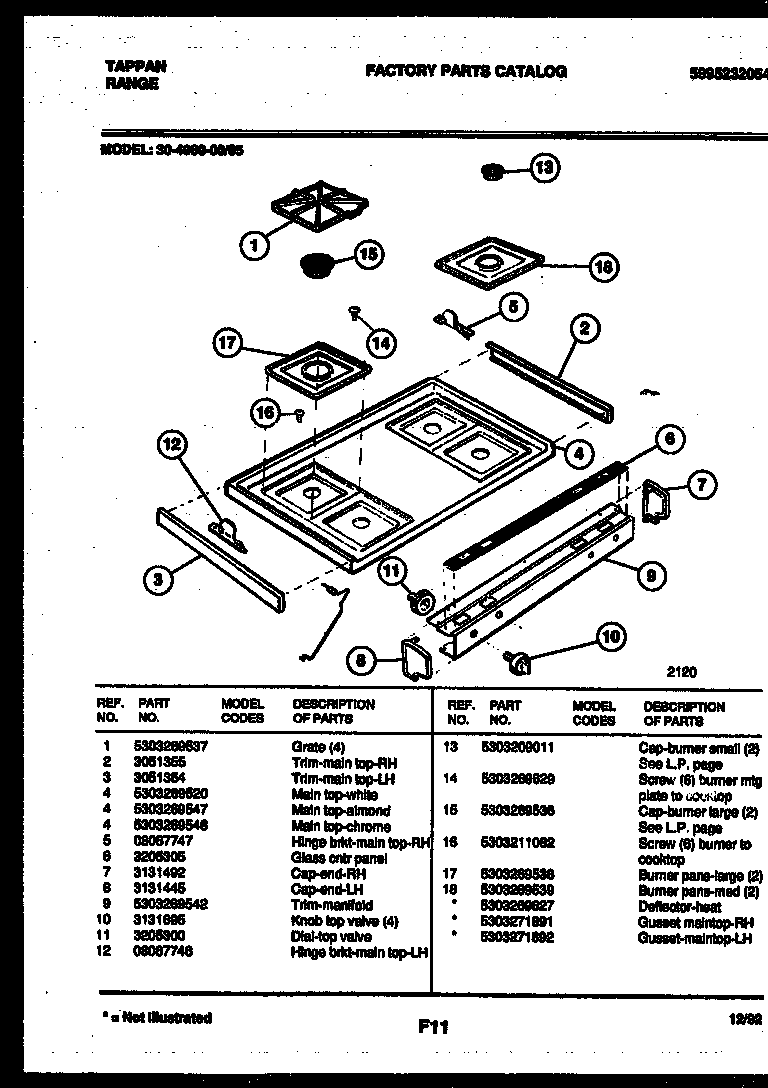

30-4980-08-05 03 – COOKTOP PARTS

30-4980-08-05 03 – COOKTOP PARTS

Written by

in

30-4980-08-05 03 – COOKTOP PARTS

Products

PositionProduct
*82078WCI 5303269627
*82079GUSSET-MTG (LH) (NON-ILLUSTRATED)
*82079GUSSET-MTG (RH) (NON-ILLUSTRATED)
1WCI 5303269537
2WCI 3051355
3WCI 3051354
4WCI 5303269548
5BRACKET-HINGE,MAIN TOP RH
6GLASS CNTR PANEL
7CAP-END-RH
8CAP-END-LH
9WCI 5303269542
10KNOB-VALVE TOP (4)
11DIAL-TOP VALVE
12BRACKET-HINGE,MAIN TOP LH
13CAP-BURNER-2 SMALL (SEE L.P. PAGE)
14SCREW (6) BURNER TO COOKTOP
15CAP-BURNER-LGE (2) (SEE L.P. PAGE)
16316069301 Frigidaire Oven Burner Mounting Primary Screw
17PAN-BURNER-LGE (2)
18PAN-BURNER-2 MED
