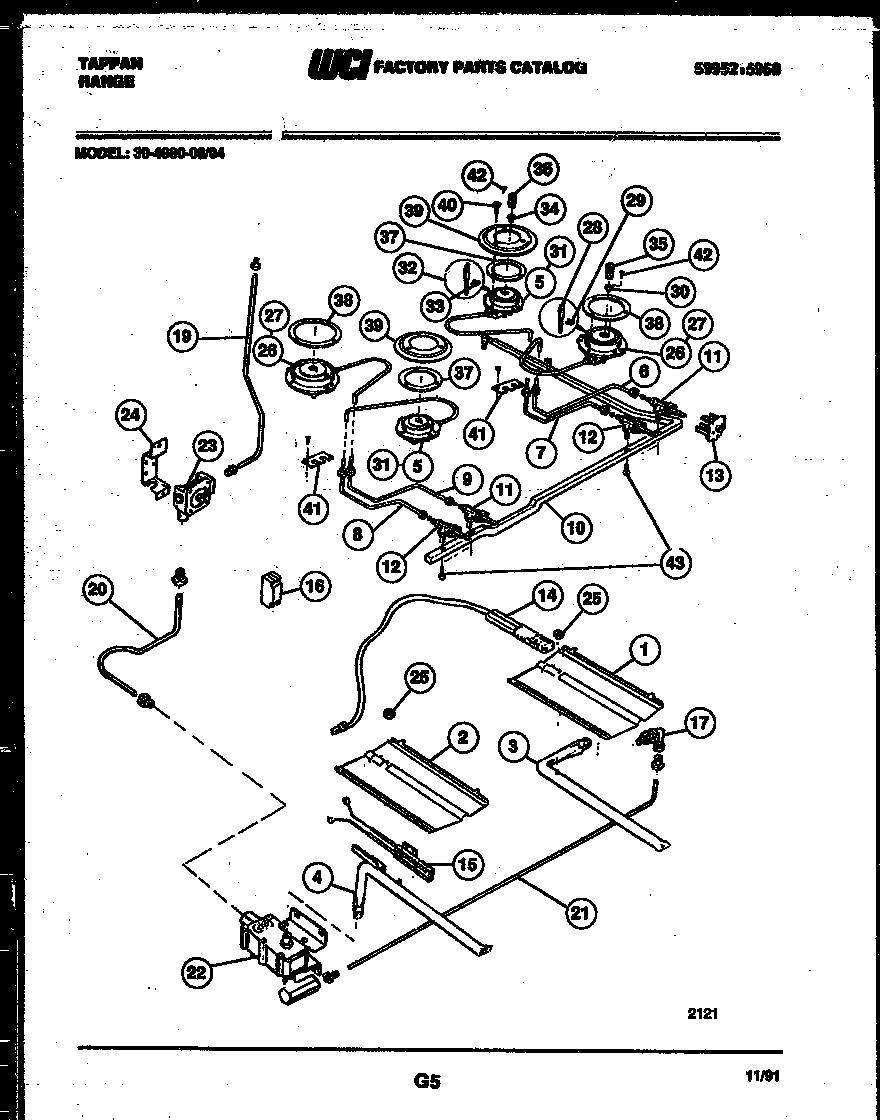

30-4980-23-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	WCI 5303269484
6	BURNER TUBE-RF
7	BURNER TUBE-RR
8	316059613 Frigidaire Oven Tube-LF
9	316059615 Frigidaire Oven Tube
10	WCI 5303271924
11	VALVE-TOP LARGE BURNER (2)
12	VALVE-TOP SMALL BURNER (2)
13	316035200 Frigidaire Ignition Switch
14	5303935068 Frigidaire Flat Igniter
15	5303935066 Frigidaire Oven Flat Igniter 17" Leads
16	5304505695 Frigidaire Oven Module
17	WCI 5303208640
19	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
20	TUBE-VALVE TO REGUL
21	TUBE-VALVE TO MIXER ELBOW
22	5303208499 Frigidaire Safety Gas Valve
23	5303935125 Frigidaire Pressure Regulator
24	316091600 Frigidaire Oven Bracket
25	5303013272 Frigidaire Oven Nut
26	WCI 5303269483
27	BURNER TOP LARGE (2)
28	WCI 5303269523
30	ORIFICE LARGE (2) SEE LP PAGE
31	BURNER TOP SMALL (2)
32	WCI 5303269525
33	IGNITER CLIP (2)
34	WCI 5303269527
35	WCI 5303269503
36	SHUTTER-BURNER-MED
37	SEAL BURNER (2) MED
38	SEAL BURNER (2) LARGE
39	WCI 5303269485
40	316069301 Frigidaire Oven Burner Mounting Primary Screw
41	WCI 5303269491
42	WCI 5303269844
43	316048200 Frigidaire Oven Screw
