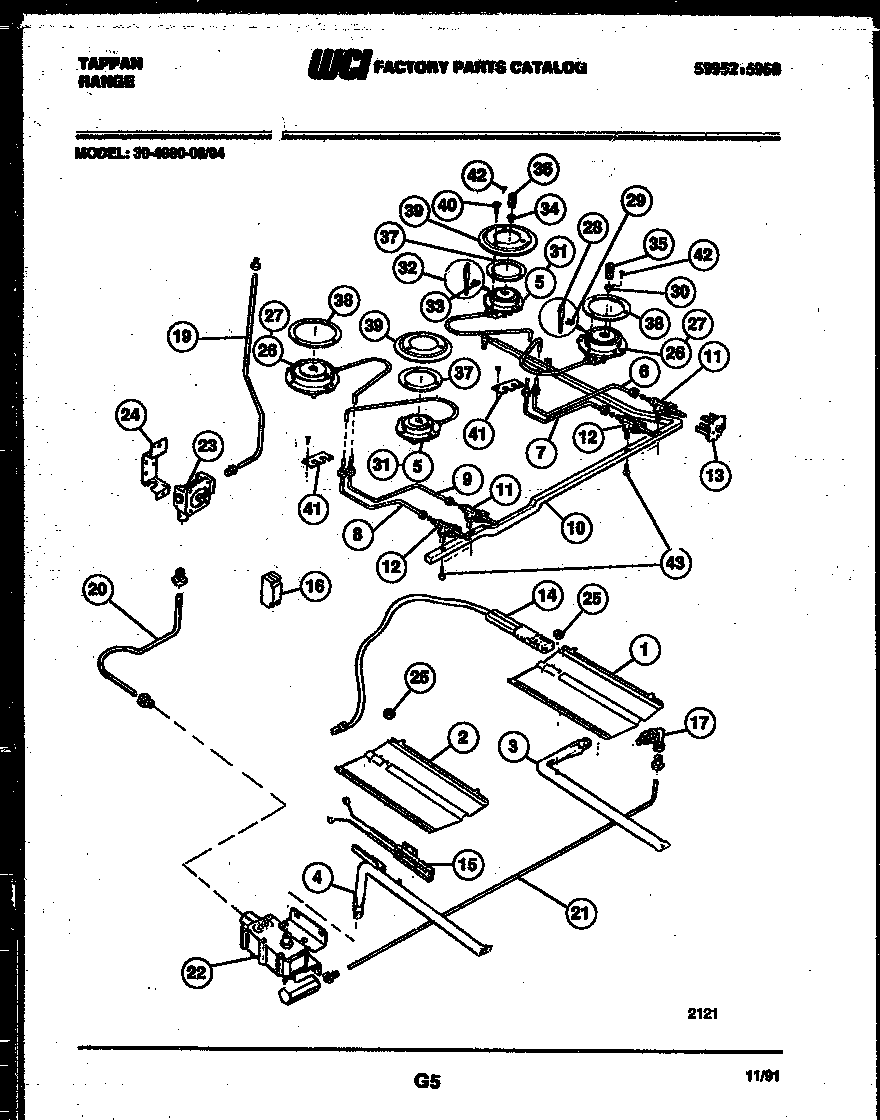

30-4980-66-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5WCI 5303269484
6BURNER TUBE-RF
7BURNER TUBE-RR
8316059613 Frigidaire Oven Tube-LF
9316059615 Frigidaire Oven Tube
10WCI 5303271924
11VALVE-TOP LARGE BURNER (2)
12VALVE-TOP SMALL BURNER (2)
13316035200 Frigidaire Ignition Switch
145303935068 Frigidaire Flat Igniter
155303935066 Frigidaire Oven Flat Igniter 17" Leads
165304505695 Frigidaire Oven Module
17WCI 5303208640
19TUBE-ALUM 3/8 REG/MANIFOLD PIPE
20TUBE-VALVE TO REGUL
21TUBE-VALVE TO MIXER ELBOW
225303208499 Frigidaire Safety Gas Valve
235303935125 Frigidaire Pressure Regulator
24316091600 Frigidaire Oven Bracket
255303013272 Frigidaire Oven Nut
26WCI 5303269483
27BURNER TOP LARGE (2)
28WCI 5303269523
30ORIFICE LARGE (2) SEE LP PAGE
31BURNER TOP SMALL (2)
32WCI 5303269525
33IGNITER CLIP (2)
34WCI 5303269527
35WCI 5303269503
36SHUTTER-BURNER-MED
37SEAL BURNER (2) MED
38SEAL BURNER (2) LARGE
39WCI 5303269485
40316069301 Frigidaire Oven Burner Mounting Primary Screw
41WCI 5303269491
42WCI 5303269844
43316048200 Frigidaire Oven Screw
