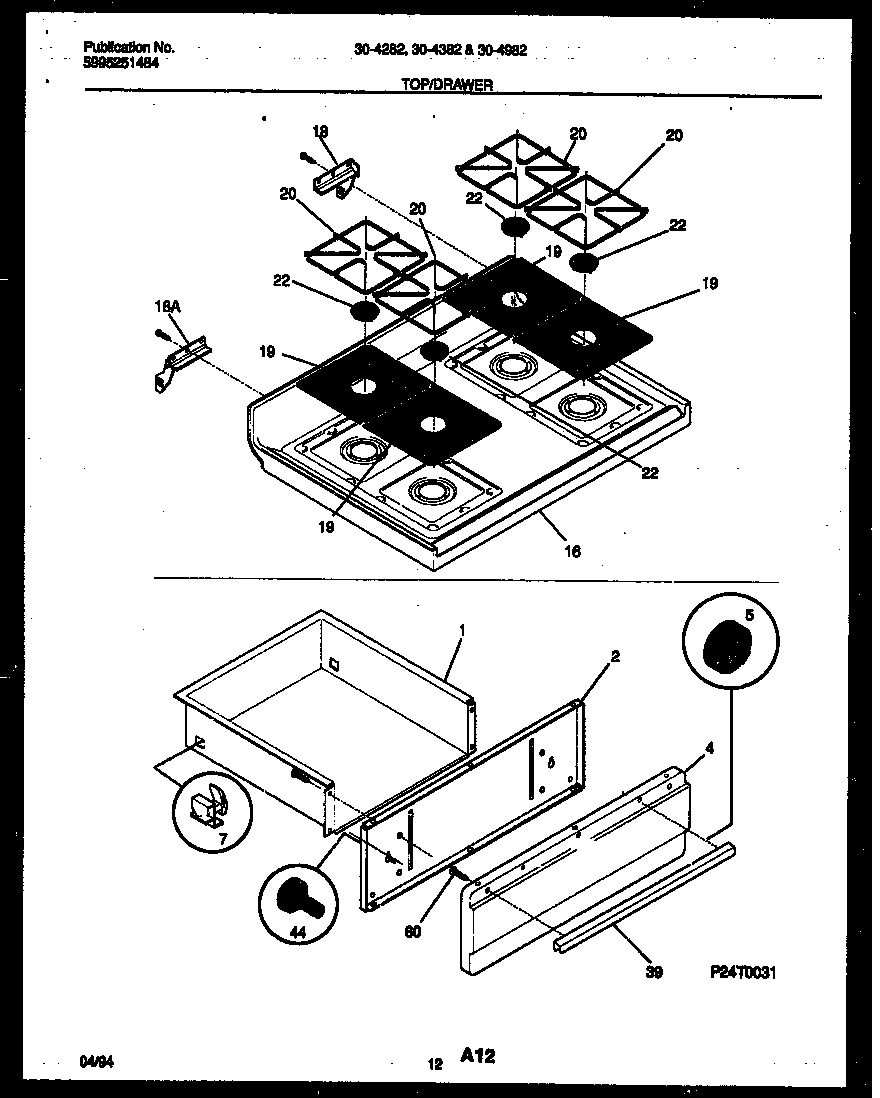

30-4982-00-02 07 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*10029WCI 5303281584
*10029WCI 5303288574
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303301546
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
18B131243700 Frigidaire Screw
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19WCI 316011401
20WCI 5303269632
22316010901 Frigidaire Burner Cap P1
39HANDLE-DRAWER, WHITE
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
