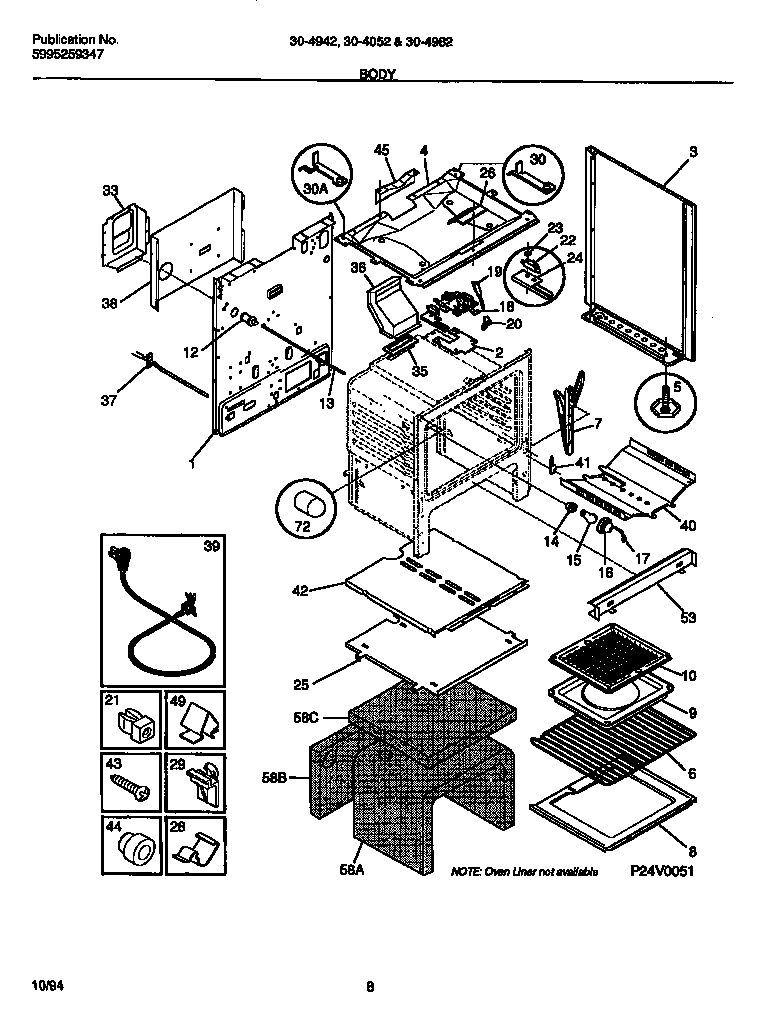

| 1 | WCI 316029405 |
| 2 | SHIELD-OVN TOP |
| 3 | PNL-B/S-RH-WHITE |
| 3C | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
| 3A | PNL-B/S-LH-WHITE |
| 3B | WCI 08067992 |
| 4 | WCI 316011905 |
| 5 | NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) |
| 5A | WCI 3934058 |
| 5 | SCREW-LEVELING |
| 6 | 316067902 Frigidaire Oven Rack |
| 7 | WCI 316007002 |
| 8A | 316064600 Frigidaire Oven Support |
| 8 | BTTM-OVEN |
| 9 | WCI 316073800 |
| 10 | WCI 316073900 |
| 12 | WCI 316027702 |
| 13 | WCI 316026800 |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 5304524341 Frigidaire Lens |
| 17 | RETAINER-GLASS |
| 18 | WCI 5303015453 |
| 18A | SHIELD-LATCH (NON-ILLUSTRATED) |
| 19 | WCI 5303131357 |
| 20 | WCI 3203218 |
| 20A | WCI 08013188 |
| 21 | SPACER-BODYSIDE, (8) |
| 22A | STUD SPACER (2) (NON-ILLUSTRATED) |
| 22 | SWITCH-LATCH |
| 23 | FSTNR-PUSH ON |
| 24 | SHIELD-LATCH |
| 25 | WCI 3131313 |
| 26 | WCI 08067757 |
| 28 | CLIP-WIRE |
| 29 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 30 | BRACKET-HINGE, MAIN TOP RH |
| 30A | BRACKET-HINGE, MAIN TOP, LH |
| 33 | SHIELD, REAR WALL |
| 35 | 316542102 Frigidaire Flue Gasket |
| 36 | WCI 5303272844 |
| 37 | 5304497424 Frigidaire Oven Temperature Sensor Probe Kit |
| 38 | WCI 316035301 |
| 39 | 5304515659 Frigidaire Oven Power Cord |
| 40 | WCI 3200836 |
| 41 | WCI 3131570 |
| 42 | SHIELD-HEAT UPPER |
