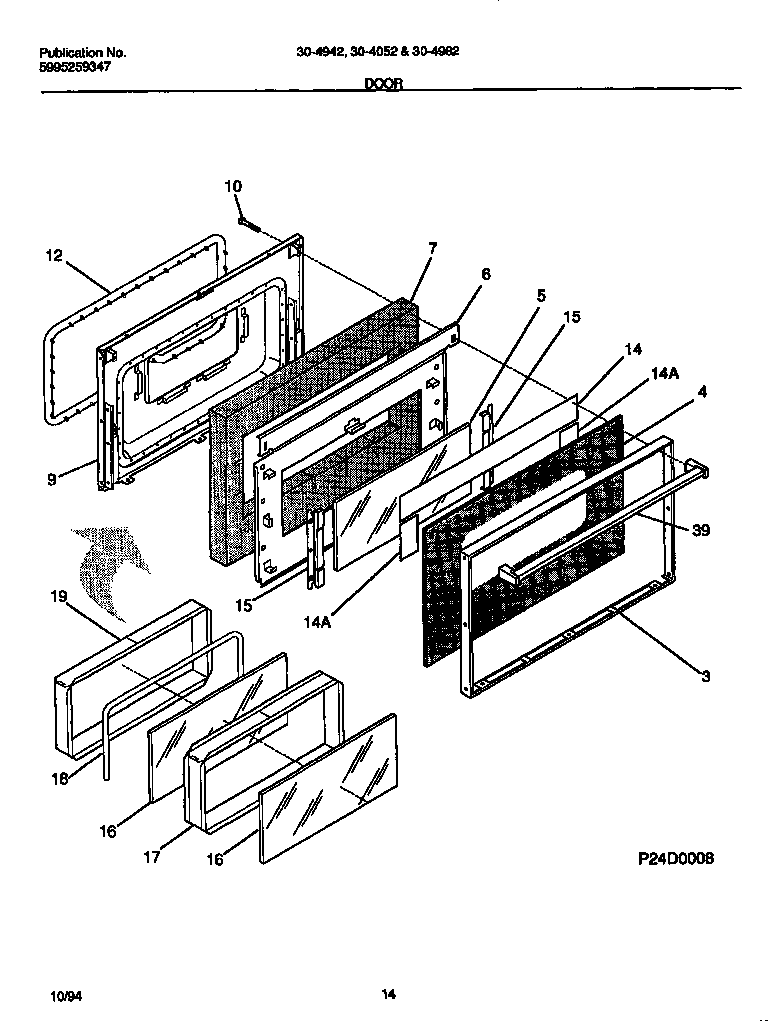

30-4982-00-03 08 – DOOR

Products

Position	Product
*92773	RIVET-POP, WARING-PLATE
*92767	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*92772	WCI 5303269859
3	WCI 316067802
4	GLASS-OVEN DOOR, BLACK, OUTER
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION
7	INSULATION-OVEN DOOR
9	WCI 316066603
10	SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
12	5303131601 Frigidaire Oven Seal
14	REFLECTOR, ALUMINUM FOIL
14A	5303208655 Frigidaire Reflector Assembly
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
39	HANDLE-DOOR, OVEN
