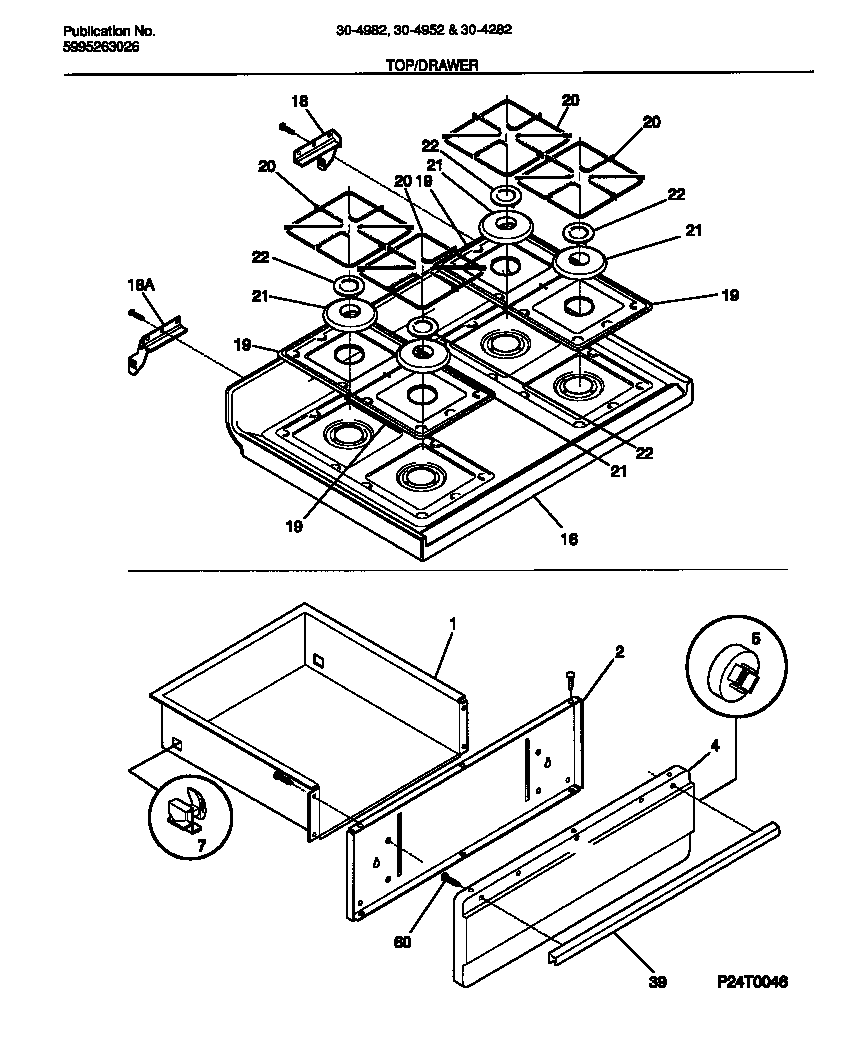

30-4982-00-04 06 – TOP, DRAWER

30-4982-00-04 06 – TOP, DRAWER

Written by

in

30-4982-00-04 06 – TOP, DRAWER

Products

PositionProduct
*55652WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 5303301546
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
18HINGE-MAIN TOP (RH)
18131243700 Frigidaire Screw
18HINGE-MAIN TOP (LH)
19WCI 316011401
20WCI 5303269632
22316010901 Frigidaire Burner Cap P1
39HANDLE-DRAWER, WHITE
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
