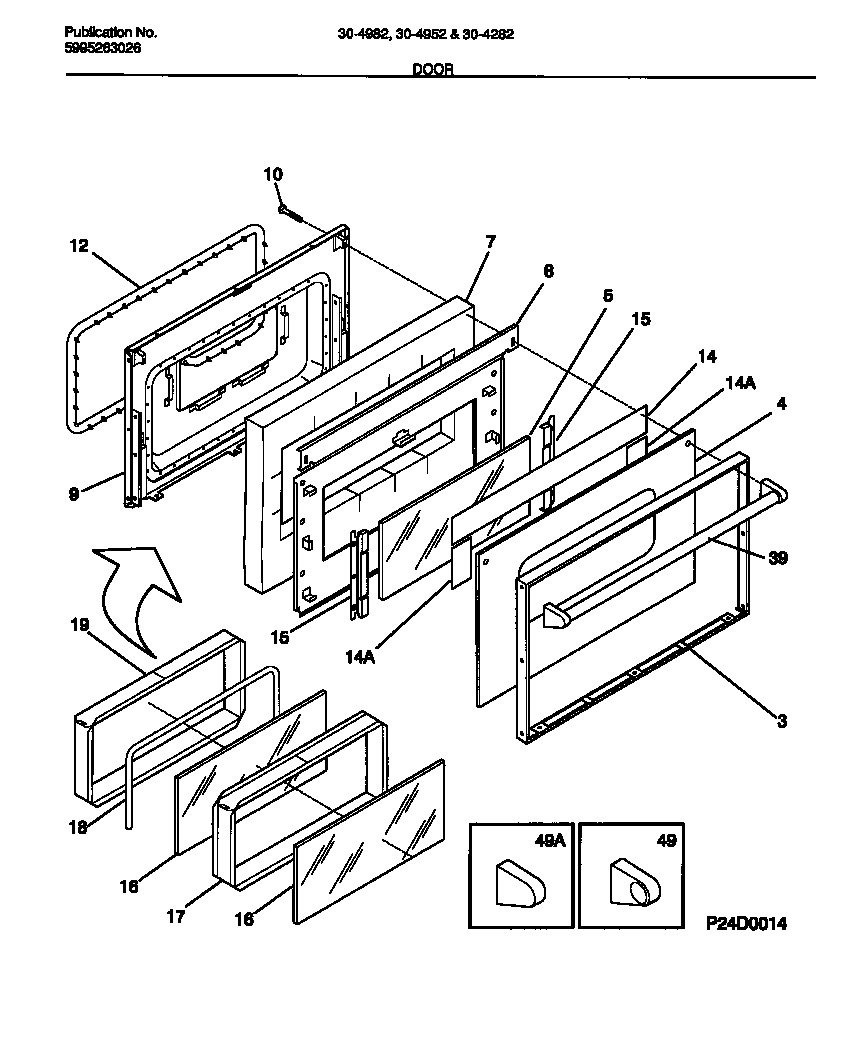

30-4982-00-04 07 – DOOR

Products

PositionProduct
*55654RIVET-POP, WARING-PLATE
*55653WCI 316065300
*55655SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*55656WCI 5303269859
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7WCI 316076400
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18ASEAL-ROPE, 0.25 DIA
18B131243700 Frigidaire Screw
19WCI 316067600
39HANDLE
49WCI 5303307192
49WCI 5303307193
