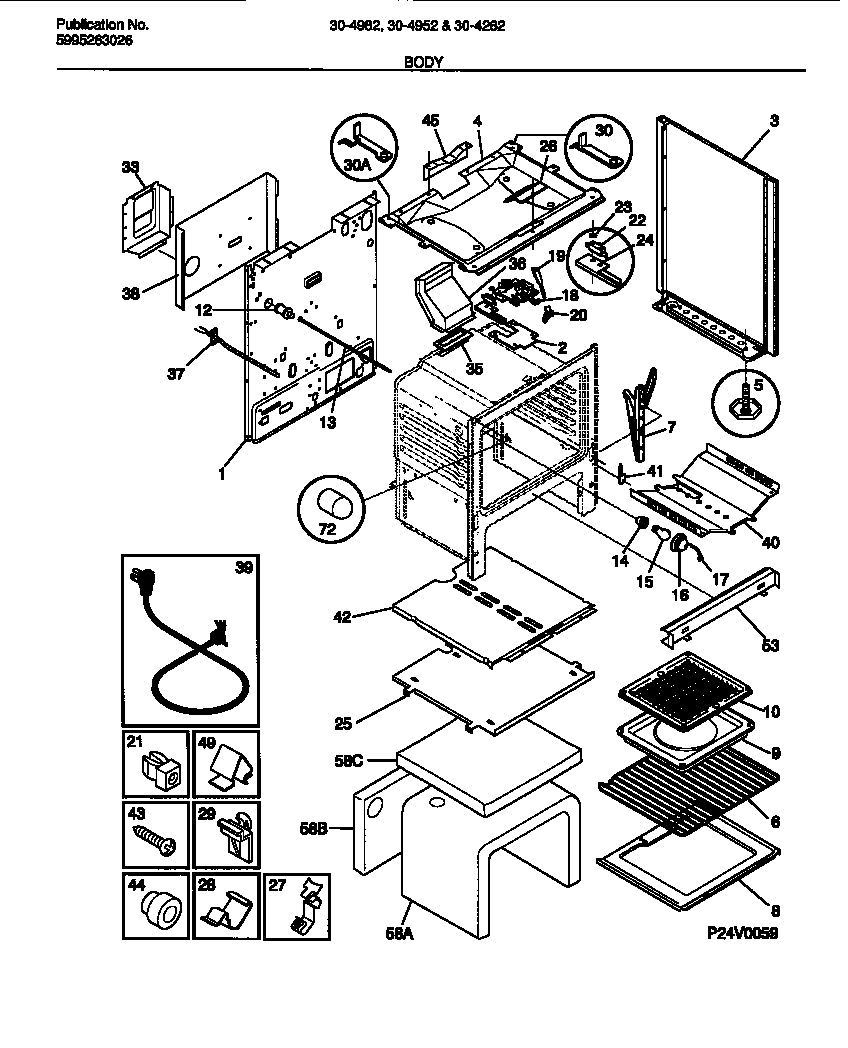

30-4982-23-04 05 – BODY

30-4982-23-04 05 – BODY

Written by

in

30-4982-23-04 05 – BODY

Products

PositionProduct
*55651WCI 08067961
*55648HARNESS-WIRING, MAIN (NON-ILLUSTRATED)
*55650FASTENER-EDGE MTG (NOT ILLUSTRATED)
1WCI 316029410
2SHIELD-OVN TOP
3WCI 316081006
3BWCI 08067992
3WCI 316081007
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
4WCI 316011905
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
5BWCI 3934058
6316067902 Frigidaire Oven Rack
7WCI 316007002
8B316064600 Frigidaire Oven Support
8ABTTM-OVEN
9WCI 316073800
10WCI 316073900
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18AWCI 5303015453
18BSHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 08013188
20WCI 3203218
21SPACER-BODYSIDE, (8)
22BSTUD SPACER (2) (NON-ILLUSTRATED)
22ASWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316035301
395304515659 Frigidaire Oven Power Cord
40AWCI 3200836
40BSCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53ASHIELD-FRONT
53B08067973 Frigidaire 0 Insulation
58INSULATION, OVEN WRAPPER
58WCI 316054200
58INSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
