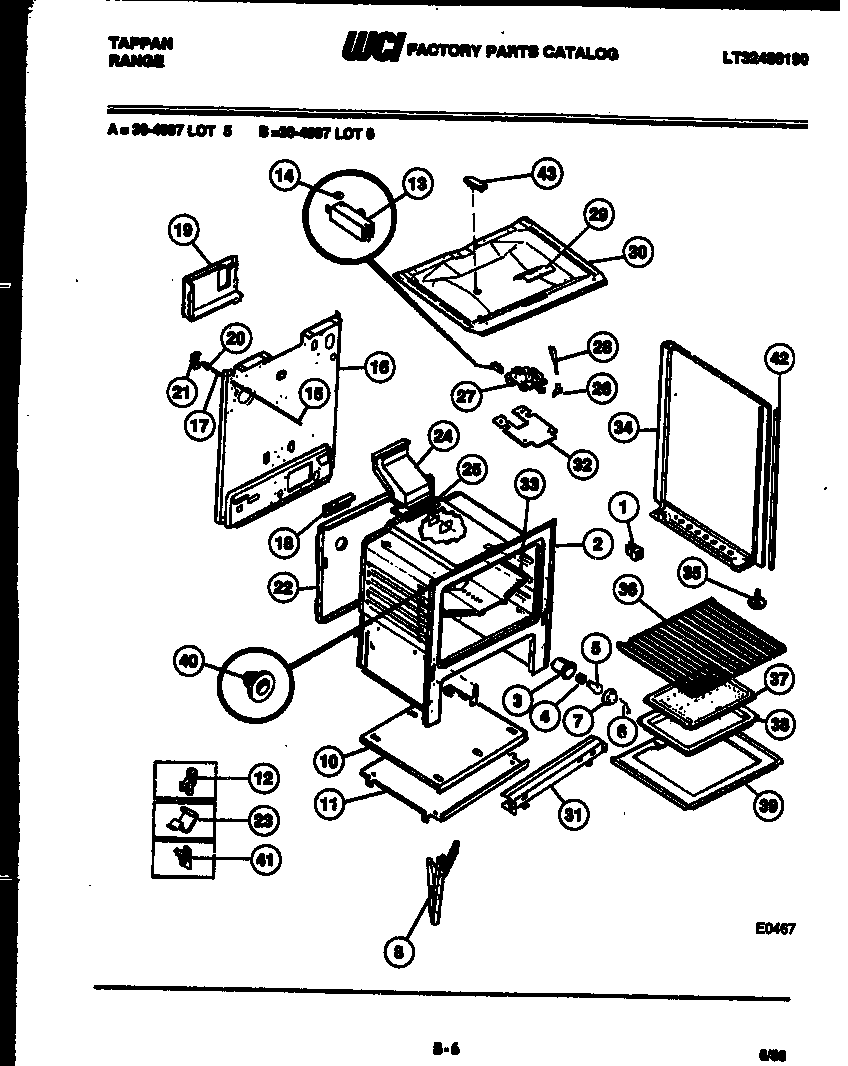

30-4987-66-05 07 – BODY PARTS

Products

PositionProduct
*14690WASHER-BLACK
*14690ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1WCI 665T188P02
3WCI 3131363
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WCI 3131104
7WCI 3131298
8WCI 316007002
9WCI 3131570
10WCI 3131312
11WCI 3131313
11AWCI 665T437F01
12CLIP-TUBING (2)
13WCI 3131672
14WCI 241T001P01
14ASTUD, SPACER (2) (NON-ILLUSTRATED)
15WCI 174T329P01
15A5304534000 Frigidaire Cord
16WCI 3131567
17ROD-LIGHT SWITCH
18ANGLE LIGHT SWITCH
19CHANNEL-LIGHT SHLD
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 3131316
23CLIP, WIRE
24WCI 3131931
25BSCREW-SET KNOB MTG (NON-ILLUSTRATED)
25ASHIELD-LATCH (NON-ILLUSTRATED)
25316542102 Frigidaire Flue Gasket
27WCI 368T027P01
28WCI 3131357
29WCI 3131101
30WCI 095T030F02-86
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3131315
34APNL. B/S (RH WEAT)
34PNL. B/S (LH WEAT)
34PANEL B/S-LH BLACK
34APANEL B/S-RH BLACK
35WCI 636M004P01
36316067902 Frigidaire Oven Rack
37WCI 3131356
38PAN, BROILER
39WCI 058T036F03-86
39A316064600 Frigidaire Oven Support
39B3131903 Frigidaire Door/Drawer Bumper
40EWCI 358T158S02
40F316282700 Frigidaire Oven Screw
40BUTTON-REMOTE SW
40AFSTNR-POWER CORD (NON-ILLUSTRATED)
40BINSUL OVEN BACK (NON-ILLUSTRATED)
40C08067973 Frigidaire 0 Insulation
40DINSULATION, OVEN TOP
413051162 Frigidaire Oven Range Front Broiler Drawer Glide
42ASHIELD-OVN TOP
42BWCI 3131590
42TRIM-VERT B/S (2)
43COVER, BURNER BOX
